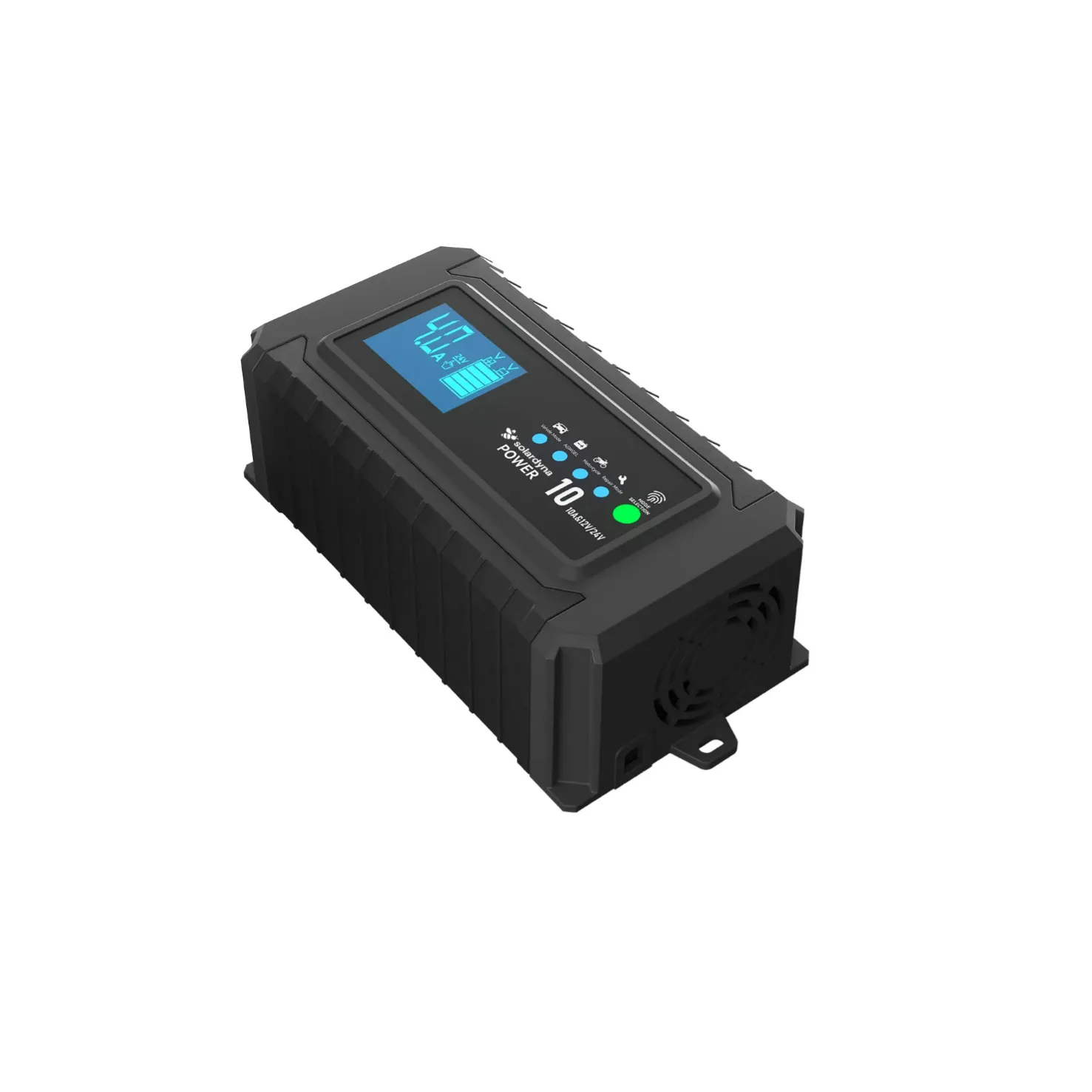

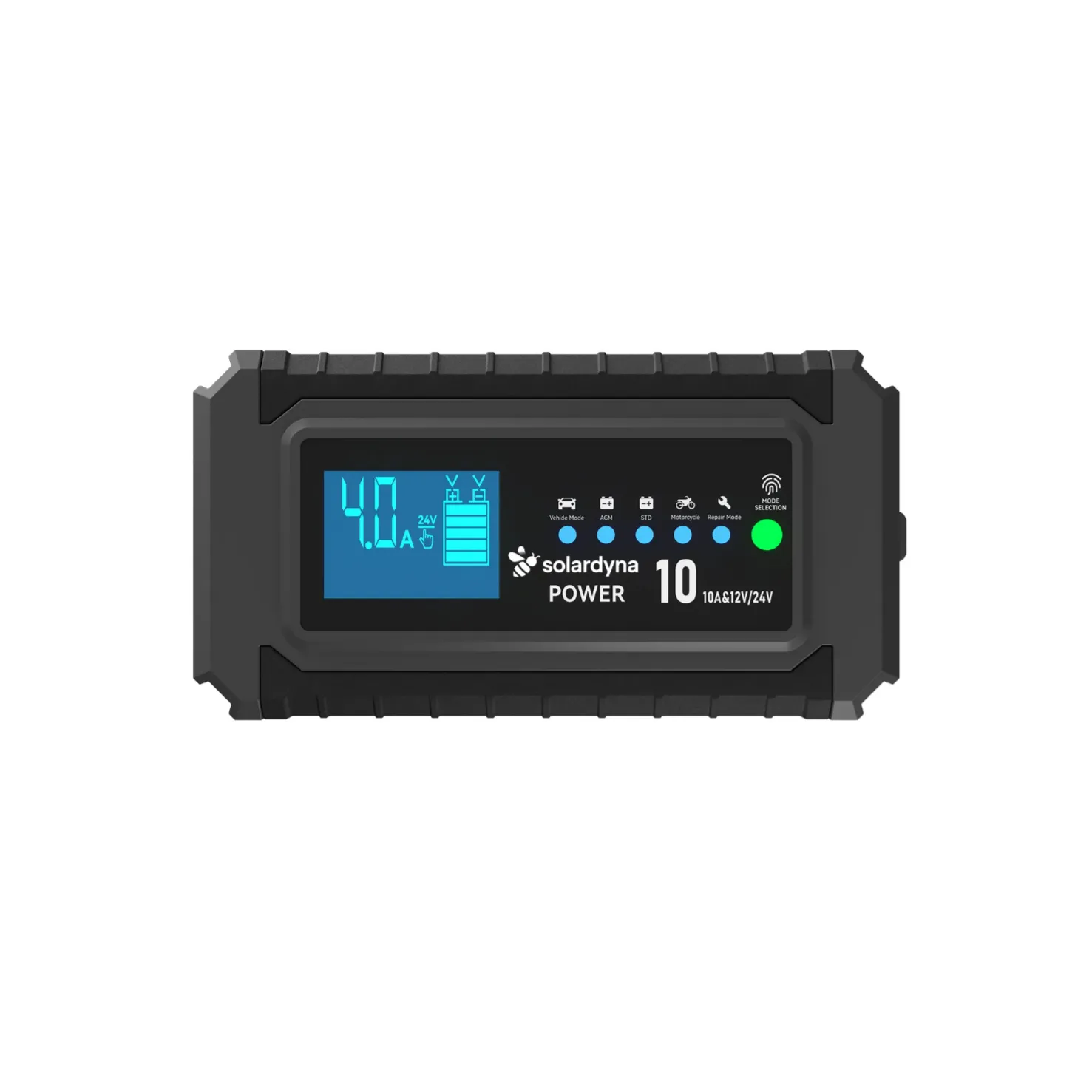

12V/24V 10A Smart Lead-Acid Battery Charger with Repair Mode

Description

Core Advantages of 12V/24V 10A Smart Battery Charger

Intelligent Multi-Stage Charging Technology

Built with advanced multi-stage charging algorithms, this 12V/24V smart battery charger automatically adjusts between desulphation, constant current, constant voltage, pulse, and float charging stages. It ensures optimized charging efficiency while protecting lead-acid batteries from overcharging and performance degradation.

Advanced Battery Repair & Desulphation Function

Equipped with intelligent pulse repair technology, the charger helps restore deeply discharged and lightly sulfated lead-acid batteries. The repair mode improves battery activation, extends service life, and reduces replacement frequency — making it ideal for professional automotive and workshop applications.

Wide Compatibility for Multiple Battery Types

Designed for 12V and 24V lead-acid batteries, including AGM and STD types, this smart charger supports vehicle, motorcycle, and small commercial battery systems. Adjustable current levels (10A/8A/5A/3A) ensure safe charging across different battery capacities.

Comprehensive Safety Protection System

Integrated with overvoltage, overcurrent, overheating, short-circuit, reverse polarity, and undervoltage protection, the charger guarantees stable and secure operation. The flame-retardant housing further enhances safety in workshop and garage environments.

OEM-Ready Design for Global Distribution

Supporting AC 100–240V input and customizable plug options, this smart battery charger is ideal for distributors, wholesalers, and OEM partners targeting international markets. Compact size and durable construction ensure reliable bulk supply performance.

Technical Specifications & Performance Data – 12V/24V 10A Smart Battery Charger

To ensure stable performance across different automotive and industrial applications, this 12V/24V 10A smart lead-acid battery charger is engineered with precise output control and optimized charging efficiency. Below are the detailed technical specifications for professional evaluation and bulk procurement reference.

Electrical Input & Output

• Input Voltage: AC 100–240V, 50/60Hz (Global Voltage Compatible)

• Output Voltage: DC 14.8V / 29.6V ±0.3V

• Output Current (12V Mode): 3A / 5A / 8A / 10A

• Output Current (24V Mode): 2A / 3A / 4A / 5A

• Peak Power: 200W

This wide voltage input range makes the charger suitable for international distribution and OEM export markets.

Charging Performance

• Charging Efficiency: ≥85%

• Charging Method: Intelligent Multi-Stage Charging
  (Desulphation → Constant Current → Constant Voltage → Pulse → Float)

• Battery Compatibility: 12V & 24V Lead-Acid Batteries (AGM / STD)

• Repair Function: Built-in pulse desulphation technology

Optimized charging algorithms help extend battery lifespan and reduce maintenance costs for automotive service providers.

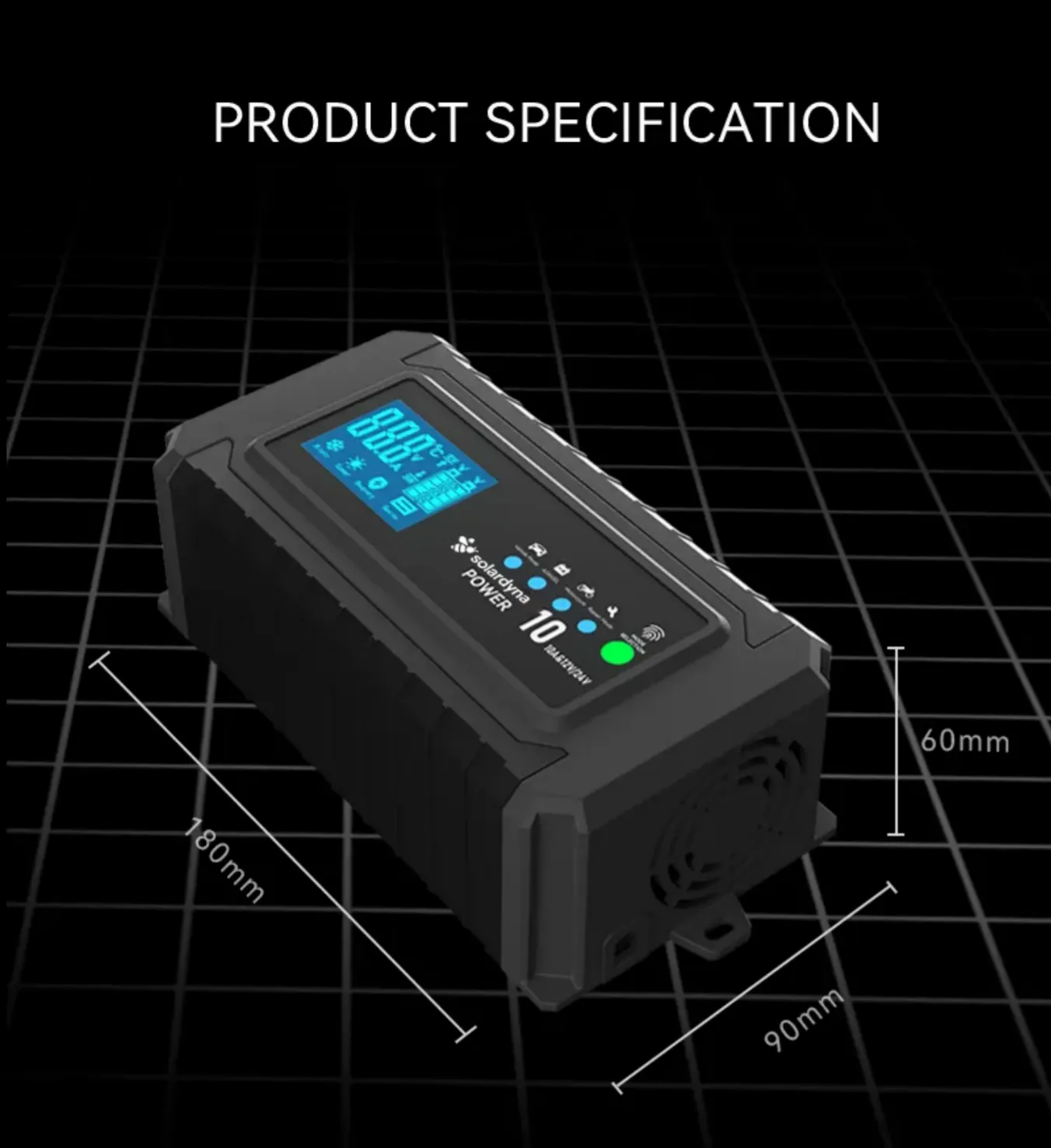

Physical Specifications

• Dimensions: 180 × 90 × 60 mm

• Net Weight: 0.6 kg

• Housing: Flame-Retardant Material

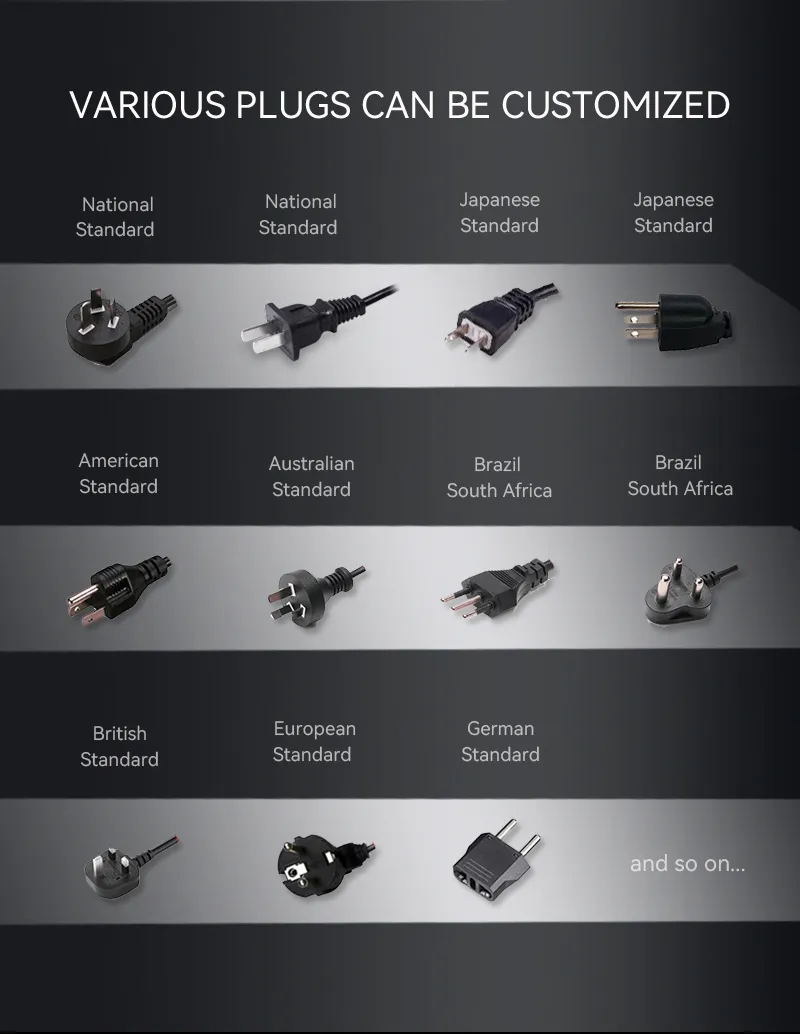

• Plug Type: Customizable for different national standards

Compact size and lightweight structure make it ideal for wholesale distribution and retail packaging.

Frequently Asked Questions – 12V/24V 10A Smart Battery Charger

1. What types of batteries are compatible with this 12V/24V smart charger?

This charger is designed for 12V and 24V lead-acid batteries, including AGM and standard flooded (STD) types. It is not suitable for lithium batteries. The intelligent charging algorithm ensures safe and stable performance across different lead-acid battery capacities.

2. Does the charger support battery repair or desulphation?

Yes. The built-in repair mode uses pulse desulphation technology to help recover lightly sulfated and deeply discharged batteries. While it cannot restore severely damaged batteries, it can significantly improve battery activation and extend service life in many cases.

3. Is this charger suitable for automotive workshops and commercial use?

Absolutely. With adjustable current levels (up to 10A), multi-stage charging control, and comprehensive safety protection, this smart battery charger is ideal for automotive service centers, motorcycle repair shops, and battery retailers.

4. Can the product be customized for OEM or private label orders?

Yes. OEM and private label services are available for bulk orders. Custom logo printing, packaging design, and plug type customization (EU, US, UK, AU, etc.) can be supported for international distribution.

5. What safety protections are integrated into the charger?

The charger includes overvoltage, overcurrent, overheating, short-circuit, undervoltage, and reverse polarity protection. The flame-retardant housing further enhances operational safety in workshop environments.

6. What is the global market compatibility of this battery charger?

The unit supports AC 100–240V, 50/60Hz input, making it suitable for worldwide export markets. This wide input range simplifies inventory management for distributors operating across multiple regions.

7. What is the typical charging efficiency and performance stability?

The charger operates at approximately 85% charging efficiency and maintains stable voltage output (±0.3V tolerance). Intelligent temperature compensation ensures consistent performance under varying environmental conditions.

8. What is the minimum order quantity (MOQ) for bulk purchase?

MOQ depends on packaging and customization requirements. Standard units are available for bulk wholesale, while OEM orders may require higher quantities. Please contact our sales team for detailed quotation and lead time.
