Description

Key Advantages of the 3.6KW Hybrid Solar Inverter System

High-Efficiency 80A MPPT Solar Charging

The built-in 80A MPPT controller maximizes solar energy harvesting efficiency, improving charging performance and reducing energy loss. The wide 120V–500V PV input range provides greater flexibility for different solar panel configurations.

Pure Sine Wave Hybrid Power Output

This 3.6KW hybrid solar inverter delivers stable pure sine wave output, ensuring safe and reliable power supply for sensitive household and commercial electrical equipment.

24V 208Ah (5324Wh) LiFePO4 Battery with 6000 Cycles

Equipped with a 24V 208Ah lithium iron phosphate battery, the system offers up to 6000 cycle life and a 10-year design lifespan, significantly reducing long-term replacement costs.

Intelligent BMS Protection for Safety

The integrated smart BMS provides overcharge, over-discharge, overcurrent, short-circuit and temperature protection, ensuring stable and secure daily operation.

Generator Compatible Hybrid Operation

Supports generator input for flexible hybrid configuration, making it ideal for unstable grid areas and remote off-grid installations.

WiFi Remote Monitoring & Smart Management

Built-in WiFi monitoring enables real-time system tracking, remote diagnostics and easier after-sales service management.

Integrated Same-Brand Inverter & Battery Design

Using the same-brand inverter and LiFePO4 battery improves system compatibility, reduces communication issues and enhances long-term operational stability.

---

System Configuration & Technical Overview of the 3.6KW Hybrid Solar Inverter System

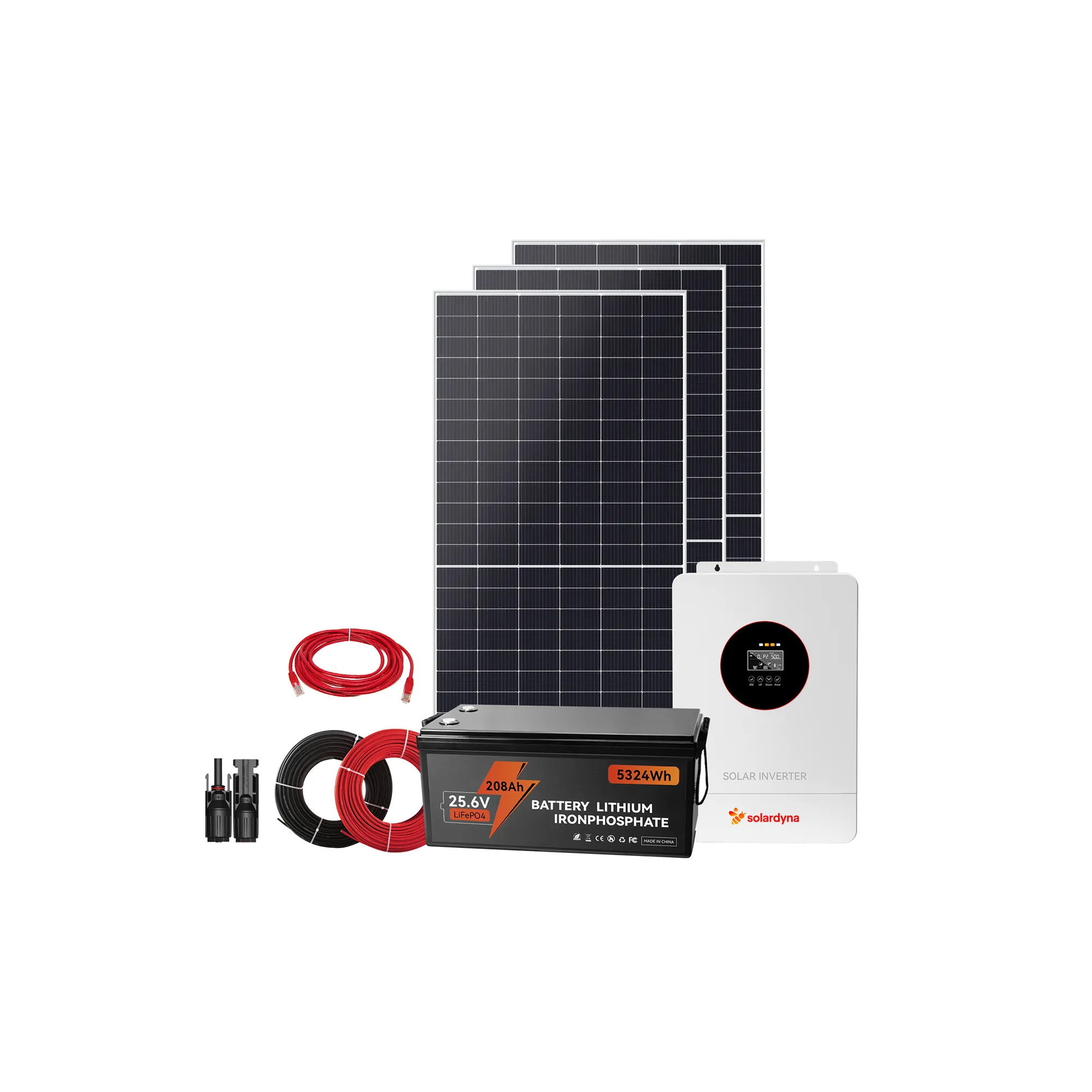

The 3.6KW hybrid solar inverter with 24V 208Ah LiFePO4 battery is designed as a compact and integrated solar energy storage system. It combines power conversion, battery storage and intelligent monitoring into a unified architecture suitable for residential and small commercial installations.

The system supports both off-grid and hybrid operation, allowing flexible energy management based on solar generation, battery capacity and grid availability.

Integrated Hybrid Solar Energy Storage Architecture

This hybrid solar inverter system consists of:

• 3.6KW Pure Sine Wave Hybrid Solar Inverter

• Built-in 80A MPPT Solar Charge Controller

• 24V (25.6V) 208Ah LiFePO4 Battery (5324Wh)

• Integrated Smart BMS Protection System

• WiFi Remote Monitoring Module

• Generator Input Interface

The inverter and LiFePO4 battery are designed for compatibility within the same system platform, reducing communication mismatch risks and improving operational stability.

Key Technical Specifications.

Parameter	Specification
Rated Output Power	3.6KW
Inverter Output Type	Pure Sine Wave
MPPT Charging Current	80A
PV Input Voltage Range	120V–500V
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Battery Voltage	24V (25.6V)
Battery Capacity	208Ah
Battery Energy	5324Wh
Cycle Life	Up to 6000 Cycles
Monitoring System	WiFi Remote Monitoring
Generator Support	Yes



Flexible Operating Modes for Hybrid Solar Applications

The 3.6KW hybrid solar energy storage system supports multiple operating modes:

• Off-Grid Mode – Solar panels charge the LiFePO4 battery to supply standalone power.

• Hybrid Mode (Solar + Battery + Grid) – Intelligent power management prioritizes solar energy while maintaining grid stability.

• Generator Backup Mode – Compatible with external generators for enhanced reliability in unstable grid environments.

These operating modes provide flexible deployment options for residential backup power, small commercial energy storage and remote installation scenarios.

---

Frequently Asked Questions – 3.6KW Hybrid Solar Inverter System

1. Can the 3.6KW hybrid solar inverter operate in both off-grid and grid-connected mode?

Yes. This hybrid solar inverter system supports off-grid operation as well as hybrid mode (solar + battery + grid). It can automatically prioritize solar energy, switch to battery storage, and use grid or generator backup when required, ensuring stable power supply for residential and small commercial projects.

2. What type of battery is integrated in this solar energy storage system?

The system includes a 24V (25.6V) 208Ah LiFePO4 battery with 5324Wh capacity. Lithium iron phosphate chemistry provides higher safety, thermal stability and longer cycle life compared to traditional lead-acid batteries.

3. What is the expected lifespan and cycle life of the LiFePO4 battery?

The integrated LiFePO4 battery supports up to 6000 cycles under standard operating conditions and is designed for approximately 10 years of service life, making it suitable for daily cycling applications and long-term energy storage deployment.

4. What PV input range does the 3.6KW hybrid inverter support?

The inverter supports a wide PV input voltage range of 120V–500V with an 80A MPPT charge controller. This allows flexible solar panel string design and improves energy harvesting efficiency across different installation environments.

5. Is the system compatible with diesel or gasoline generators?

Yes. The hybrid solar inverter supports generator input, enabling integration with diesel or gasoline generators. This feature is especially valuable in remote areas or regions with unstable grid supply.

6. Does the system include battery protection and safety management?

Yes. The 24V LiFePO4 battery is equipped with an integrated smart BMS (Battery Management System) that provides overcharge, over-discharge, overcurrent, short-circuit and temperature protection to ensure safe and stable operation.

7. Is remote monitoring available for system management?

The system includes built-in WiFi monitoring, allowing real-time performance tracking, remote diagnostics and easier maintenance management. This is particularly useful for installers and distributors managing multiple installations.

8. Is this hybrid solar inverter system suitable for commercial distribution or project installation?

Yes. The 3.6KW hybrid solar energy storage system is suitable for residential projects, small commercial applications and distribution channels. Its integrated inverter and LiFePO4 battery design simplifies installation, reduces compatibility risks and improves overall system reliability.
