30kW 50kWh Hybrid Energy Storage System

Description

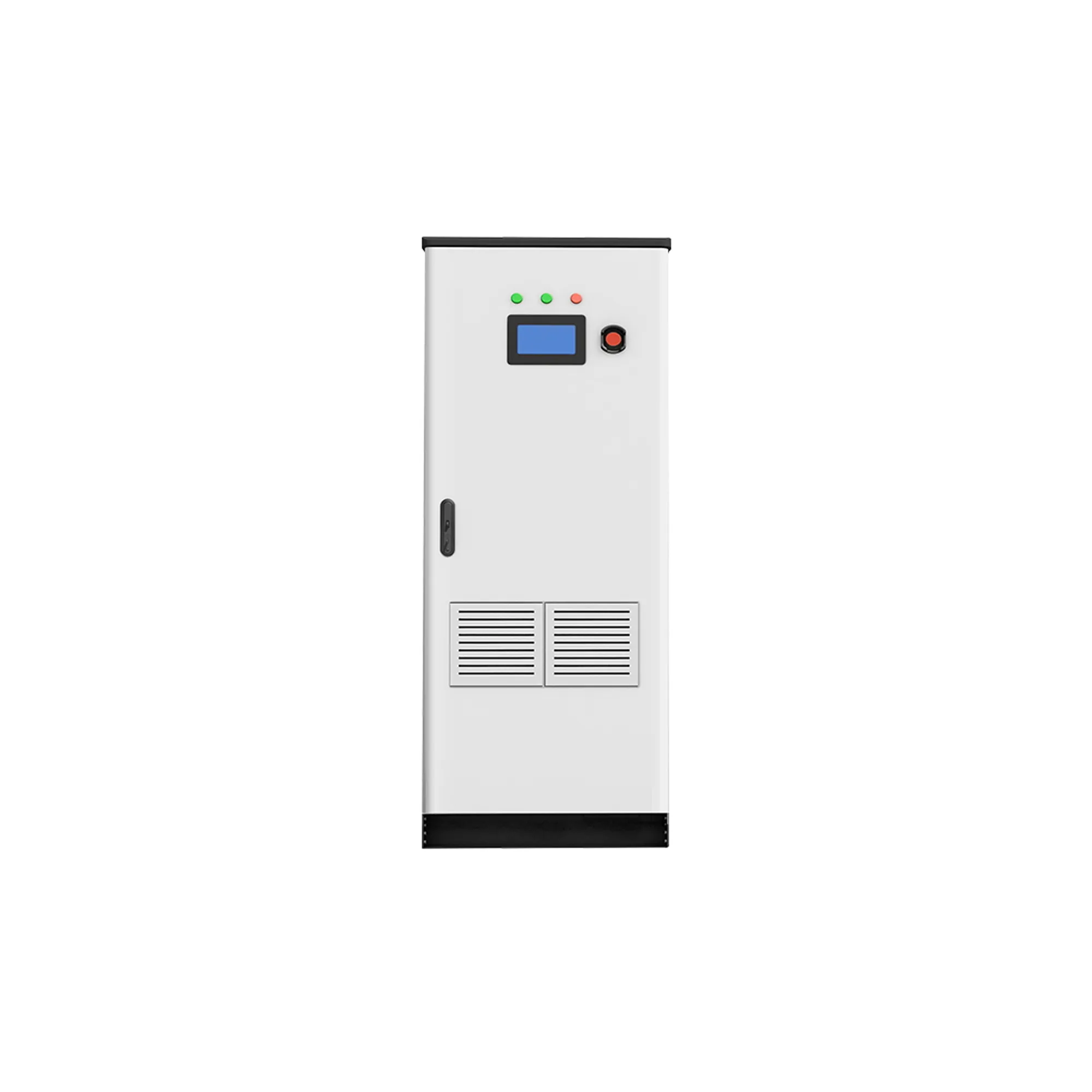

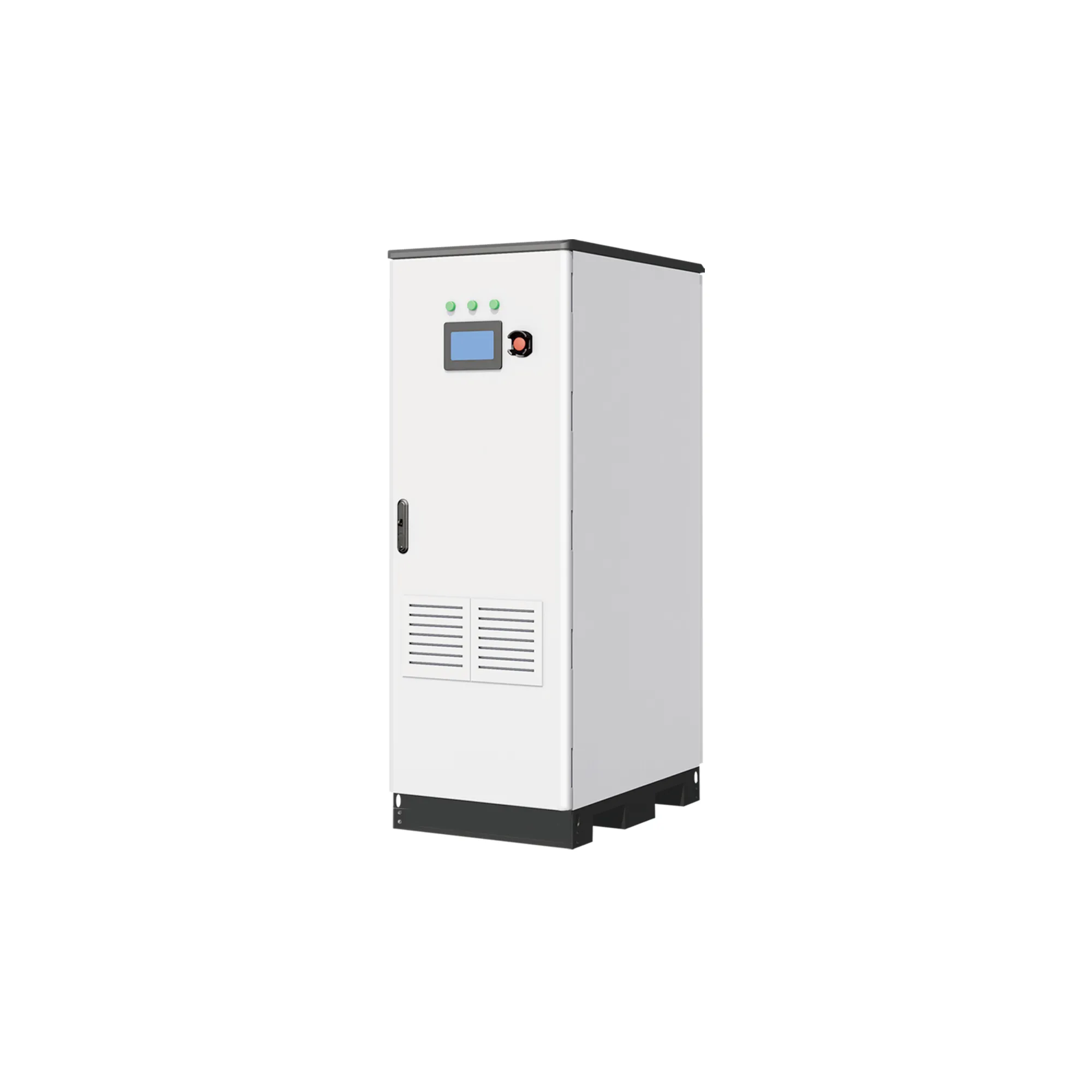

Overview of the 30kW 50kWh Hybrid Energy Storage System

The 30kW 50kWh Hybrid Energy Storage System is an all-in-one industrial and commercial ESS cabinet integrating LiFePO4 battery, hybrid inverter, MPPT controller and generator interface. Designed for peak shaving, backup power, microgrid and off-grid applications, this scalable solution supports up to 10 units in parallel to meet growing energy demands.

Key Features of the Hybrid Energy Storage System

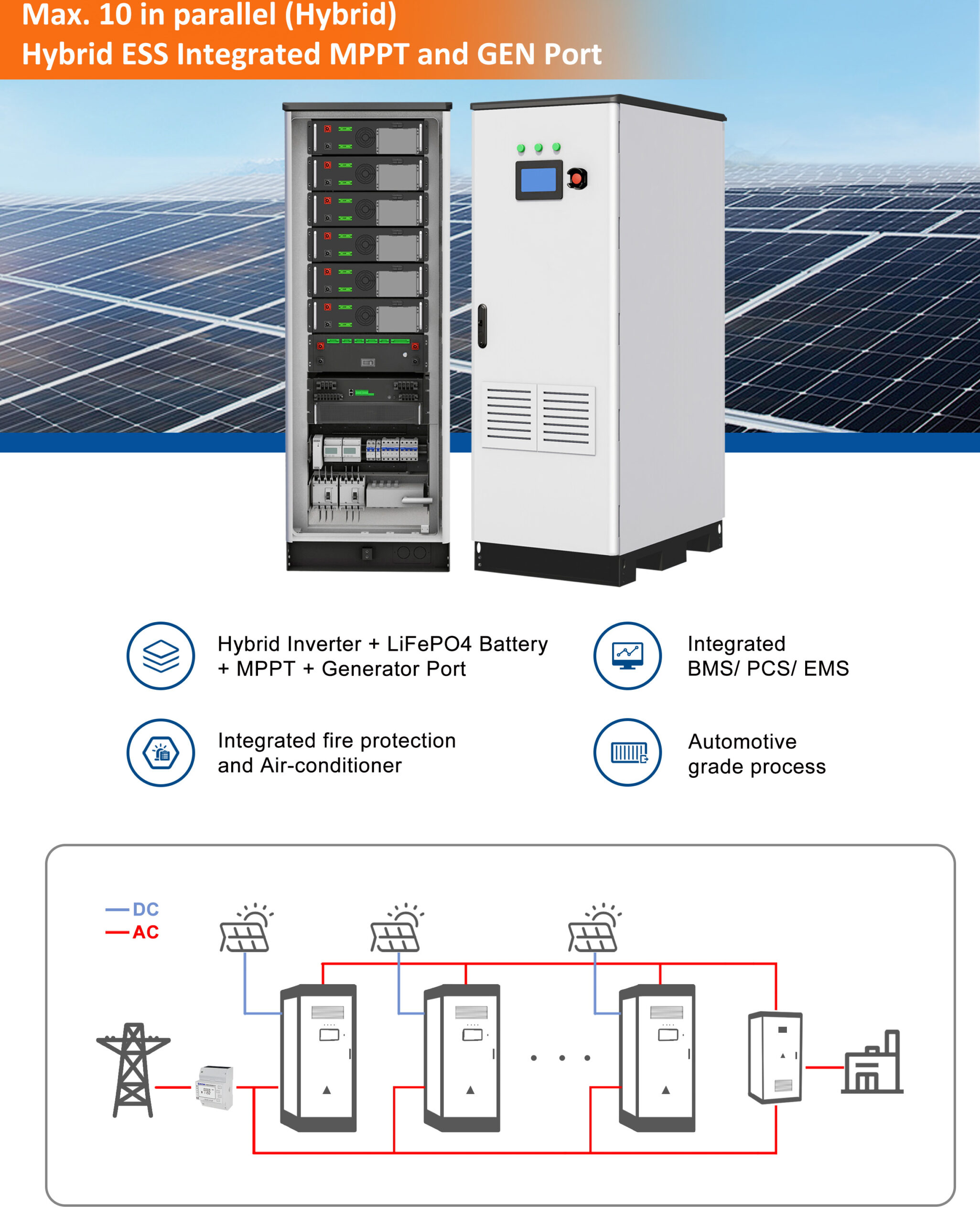

1. Scalable Parallel Expansion for Commercial ESS Projects

Supports up to 10 units in hybrid mode, enabling flexible capacity expansion for growing industrial and commercial energy storage demands.

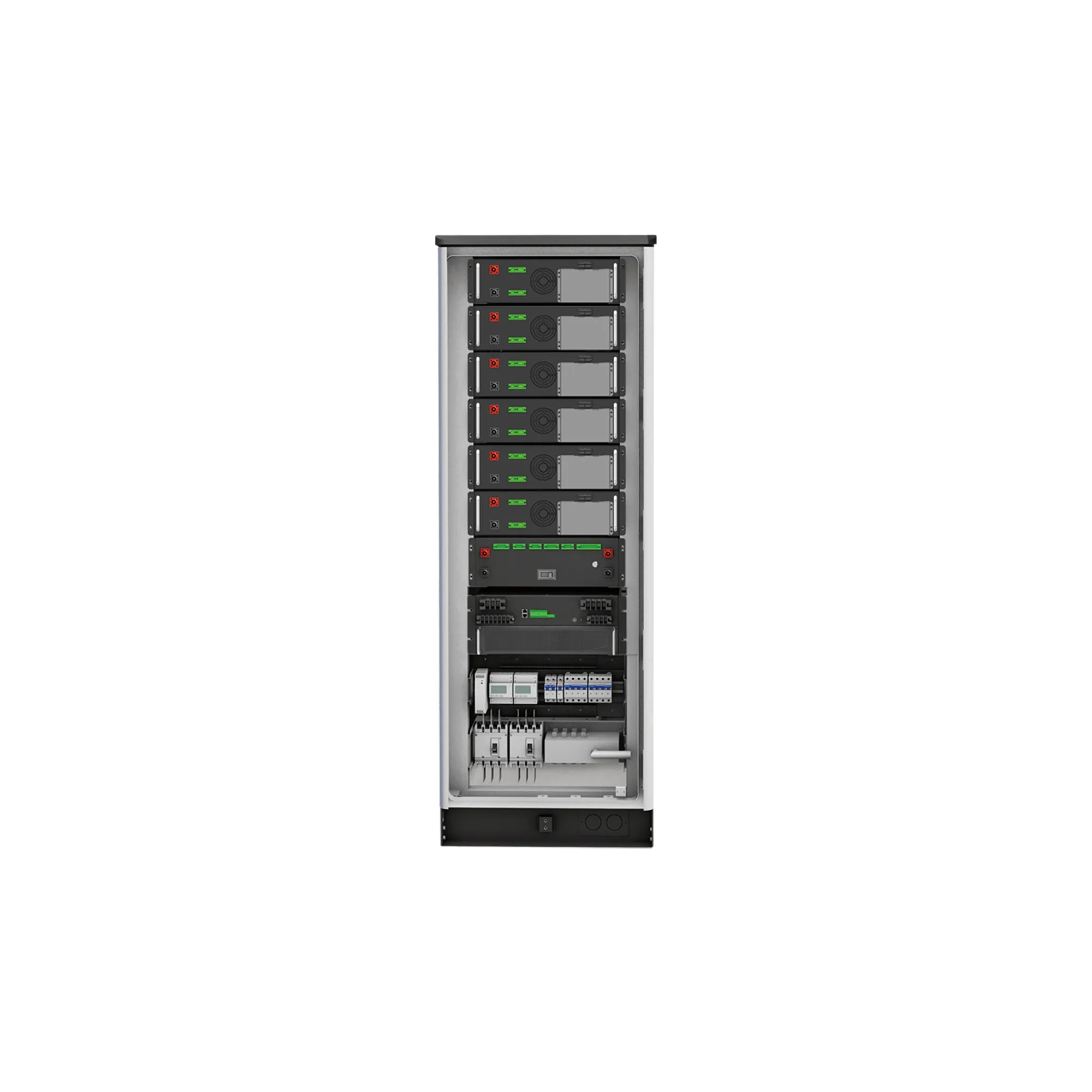

2. All-in-One Integrated Energy Storage Cabinet Design

Combines hybrid inverter, LiFePO4 battery, MPPT controller and generator port into a fully integrated ESS cabinet.

3. Multi-Source Hybrid Power Integration

Compatible with solar PV systems, utility grid and diesel generators, ideal for microgrid and backup power applications.

4. Advanced Safety and Thermal Management System

Features integrated fire protection and built-in air conditioning to ensure stable operation and extended battery lifespan.

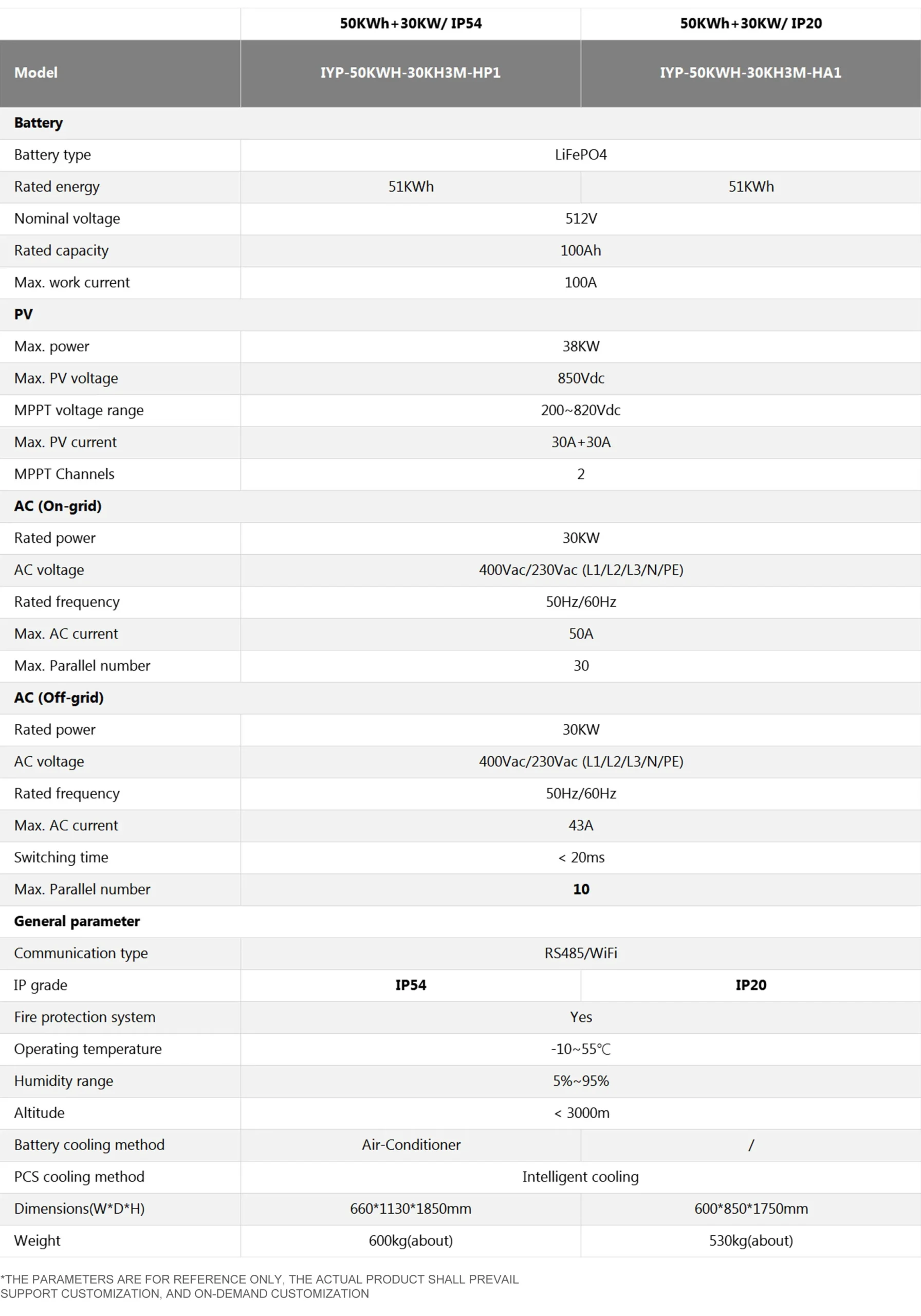

Technical Specifications of the Hybrid Energy Storage System

Item	Specification
Rated Output Power	30kW
Battery Capacity	50kWh
Battery Type	LiFePO4
Parallel Support	Max. 10 Units
Voltage Range	435–576V
Communication	RS232 / CAN / RS485
Protection Level	IP54
Cooling Method	Air Conditioner
Operating Temp	-10°C ~ 50°C

Applications of 30kW 50kWh Hybrid ESS

Commercial buildings
Industrial factories
Solar + Storage projects
Microgrid systems
Backup power systems
EV charging stations
Remote off-grid areas

Why Choose Our Energy Storage System

Integrated BMS / PCS / EMS
Automotive-grade process
Turnkey ESS solution
OEM / ODM available
Global project support

Industrial & Commercial Energy Storage System FAQs

Q1: Can the system operate with diesel generators in hybrid mode?

Yes. The system integrates a dedicated generator port, allowing seamless operation with diesel generators, solar PV and utility grid. It is ideal for microgrid, backup power and remote-area applications.

Q2: How many units can be connected in parallel?

Up to 10 units can be connected in hybrid mode, enabling flexible capacity expansion for large-scale commercial and industrial energy storage projects.

Q3: What battery technology is used in this ESS cabinet?

The system uses high-safety LiFePO4 (Lithium Iron Phosphate) battery cells, known for long cycle life, thermal stability and enhanced safety compared to conventional lithium-ion technologies.

Q4: Is this system suitable for peak shaving and demand charge management?

Yes. With integrated EMS and hybrid inverter control, the system supports peak shaving, load shifting and demand charge reduction for commercial and industrial facilities.

Q5: Does the system include built-in safety protection?

Yes. It features an integrated fire protection system, intelligent BMS monitoring and a built-in air conditioning cooling system to ensure safe and stable operation.

Q6: What communication protocols are supported?

The system supports RS232, CAN and RS485 communication interfaces, allowing integration with external monitoring platforms and energy management systems.

Q7: What are the typical application scenarios?

This 30kW 50kWh hybrid energy storage system is widely used in:

Commercial buildings
Industrial factories
Solar + storage projects
EV charging stations
Microgrid systems
Backup power systems

Q8: Is OEM or customization available for large-scale projects?

Yes. OEM/ODM services, configuration customization and project-level technical support are available for distributors, EPC contractors and system integrators.
