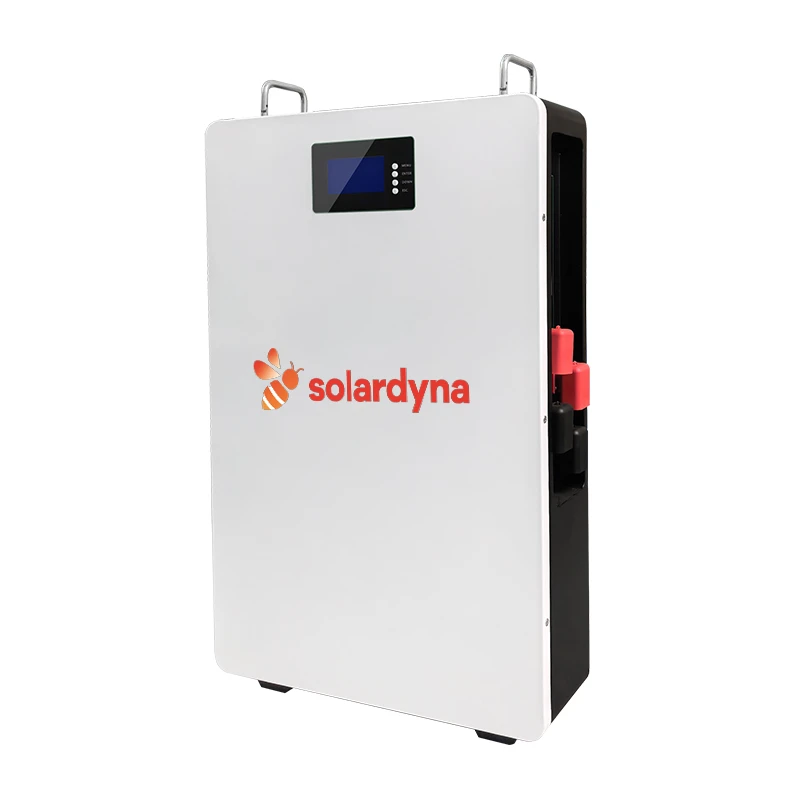

HA PRO Series Lithium Battery Wall Mounted Energy Storage System
The HA PRO Series Wall Mounted LiFePO4 Battery is designed with a compact wall-mounted architecture integrating battery modules, intelligent BMS system, and reinforced metal enclosure. The modular structure allows efficient system integration for residential and small commercial energy storage applications.
The HA PRO Series Wall Mounted LiFePO4 Battery adopts a front-maintenance design, enabling easier installation, inspection, and system expansion while maintaining structural stability and safety.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Material and Technology Advantages
The HA PRO Series Wall Mounted LiFePO4 Battery uses an industrial-grade steel and aluminum alloy enclosure combined with a galvanized anti-corrosion coating to ensure long-term durability in harsh environments.
At the battery core level, LiFePO4 chemistry provides high thermal stability, low degradation rate, and extended cycle life. The integrated BMS continuously monitors voltage, current, and temperature to ensure safe operation.
The HA PRO Series Wall Mounted LiFePO4 Battery is engineered for long-term structural reliability and stable energy output performance.
Application Scenarios
The HA PRO Series Wall Mounted LiFePO4 Battery is widely used in residential solar energy storage systems to increase self-consumption of photovoltaic power and reduce grid dependency.
In commercial energy storage applications, it supports peak shaving and load shifting, improving energy efficiency and reducing electricity costs.
For industrial backup power systems, the HA PRO Series Wall Mounted LiFePO4 Battery provides stable emergency power support and enhances system reliability in critical operations.
Performance and Technical Parameters
The system is designed with a cycle life of over 6000 cycles and supports a wide operating temperature range from -10°C to +50°C. It complies with UN38.3 and MSDS safety standards.
It features multi-layer protection including overcharge, over-discharge, over-current, short circuit, over-voltage, and over-temperature protection mechanisms.
The structural design is optimized for wall-mounted installation, ensuring stable operation under various wind load conditions and system integration environments.
Installation and EPC Integration
The HA PRO Series Wall Mounted LiFePO4 Battery is designed for standardized wall-mounted installation, significantly improving EPC construction efficiency and reducing on-site installation time.
Installation includes mounting bracket positioning, battery fixing, electrical connection, and BMS communication configuration. The system supports simplified deployment without complex civil engineering requirements.
The HA PRO Series Wall Mounted LiFePO4 Battery also supports parallel expansion for large-scale energy storage projects.
Project Value and ROI
The HA PRO Series Wall Mounted LiFePO4 Battery improves photovoltaic self-consumption rates and reduces peak electricity costs, contributing to higher overall return on investment (ROI).
With long cycle life and low maintenance requirements, lifecycle operating costs are significantly reduced.
For residential, commercial, and industrial projects, the Wall Mounted LiFePO4 Battery provides stable long-term energy economics and enhances asset value in distributed energy systems.
HA PRO Series Wall Mounted LiFePO4 Battery Technical Specification Table
Battery Models
| Model | 25.6V 100Ah | 25.6V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|
| Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Model Code | 25.6V100Ah | 25.6V200Ah | 51.2V100Ah | 51.2V200Ah |
Electrical Performance
| Item | Specification |
|---|---|
| Nominal Energy | 2560Wh / 5120Wh / 5120Wh / 10240Wh |
| Voltage Range | 22.4–58.4V / 44.8–58.4V |
| Fast Charge Voltage | 28.0V / 56.0V |
| Cut-off Voltage | 23.4V / 46.8V |
| Max Continuous Discharge Current | 100A |
| Peak Discharge Current | 150A (1 sec) |
| Max Continuous Charge Current | 50A / 100A |
Protection & BMS
| Item | Specification |
|---|---|
| Protection Functions | Overcharge / Over-discharge / Over-current / Short-circuit / Over-voltage / Over-temperature |
| Battery Management System | Smart BMS built-in |
| Communication | RS485 / CAN |
| Compatible Inverters | Deye / Growatt / Voltronic / GoodWe / Victron / SMA / Sofar / Pylontech |
Environmental Conditions
| Item | Specification |
|---|---|
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | 0°C ~ +30°C |
| Humidity | 0–95% (non-condensing) |
| Max Altitude | ≤1500m |
Mechanical Data
| Item | Specification |
|---|---|
| Installation Type | Wall-mounted |
| Protection Level | IP20 |
| Terminal Type | M8 |
| Enclosure Material | Metal housing |
Dimensions & Weight
| Model | Size (mm) | Net Weight | Gross Weight |
|---|---|---|---|
| 25.6V 100Ah | 786×455×181 | 45.7 kg | 52.0 kg |
| 25.6V 200Ah | 849×502×183 | 47.2 kg | 53.5 kg |
| 51.2V 100Ah | 1021×605×190 | 83.9 kg | 107.5 kg |
| 51.2V 200Ah | 1072×625×192 | 85.4 kg | 109 kg |
Certifications
| Item | Specification |
|---|---|
| Standards | UN38.3 / MSDS |
FAQ
Q1: Can the system withstand different wind load installation conditions?
A: Yes, the structural design is optimized for different wind load engineering requirements.
Q2: Is it suitable for low-temperature or high-snow environments?
A: The system operates reliably in temperatures from -10°C to +50°C.
Q3: What materials are used for the enclosure?
A: It uses steel and aluminum alloy with a galvanized anti-corrosion coating.
Q4: Does installation require complex construction work?
A: No, it supports standardized wall-mounted installation for fast deployment.
Q5: Can the system be customized or expanded?
A: Yes, it supports parallel connection for capacity expansion.
Q6: What is the design lifespan?
A: The design lifespan is approximately 10 years with 6000+ cycles.
Q7: Is it suitable for commercial and industrial applications?
A: Yes, it is suitable for residential, commercial, and industrial energy systems.
