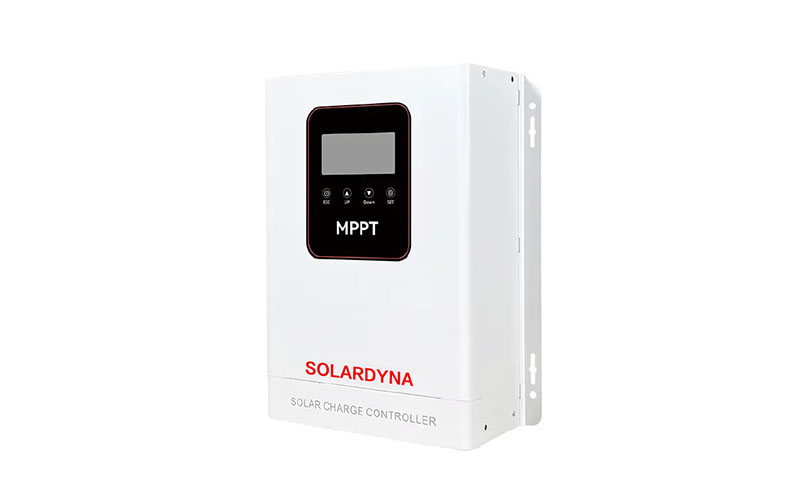

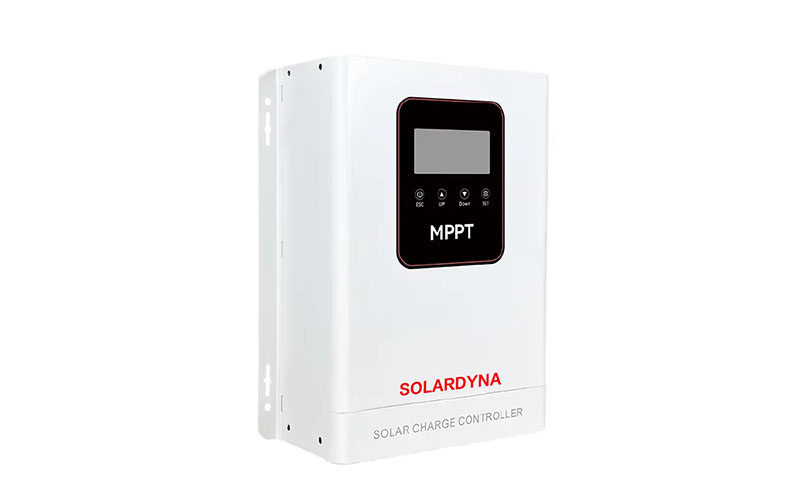

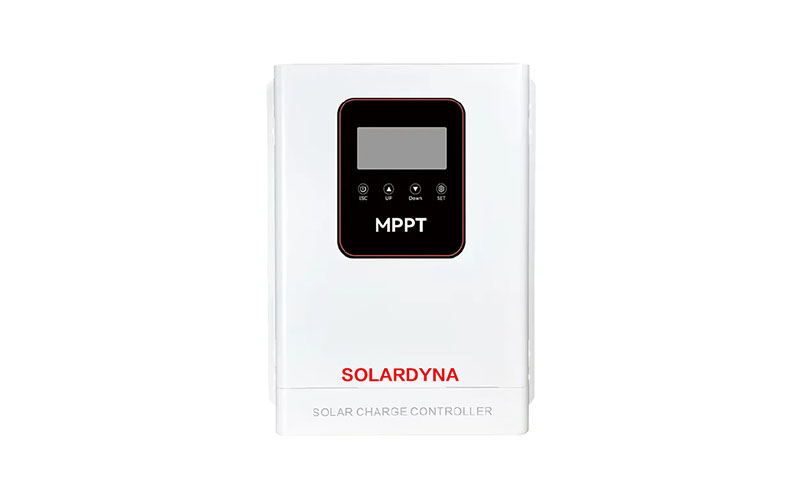

MPPT-TX Solar Charger Controller

12V/24V/36V/48V/Auto

40A 50A 60A 80A 100A 120A

DEMUDA MPPT-TX series controller supports Bluetooth / WiFi connection, and is equipped with smart chips, LCD screens, smart fans, etc. It is compatible with a variety of batteries and adopts multi-level charging mode for efficient charging. It has temperature compensation function to extend battery life. High-voltage PV charging design can reduce wiring costs and create an efficient system.

INQUIRY NOW

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

Description

►Product Features

●Wide Voltage Input:+2V~150VDC

●Optional Bluetooth/WiFi

●Adaptive Battery Voltage:12V/24V/36V/48V

●Intelligent Temperature Control

●Support Lithium Battery Activation

●Conversion Efficjency:≥99.9

●8 Security Protection

●Smart Chip

►Product Parameters

Model	TX-40A	TX-50A	TX-60A	TX-80A	TX-100A	TX-120A
System voltage	12V/24V/36V/48V/Auto
Standby loss	≤0.4W
MAX PV input voltage	180V(25℃), 150V(-25℃)
Battery voltage	9 Vdc-64Vdc
MPPT voltage range	Battery voltage+2V-150V
Rated charging current	40A	50A	60A	80A	100A	120A
Rated discharge current	20A			30A
PV maximum input power	480W/12V 960W/24V 1440W/36V 1920W/48V	600W/12V 1200W/24V 1800W/36V 2400W/48V	720W/12V 1440W/24V 2160W/36V 2880W/48V	960W/12V 1920W/24V 2880W/36V 3840W/48V	1200W/12V 2400W/24V 3600W/36V 4800W/48V	1440W/12V 2880W/24V 4320W/36V 5760W/48V

Conversion efficiency	≤98%
MPPT maximum tracking efficiency	>99%
Temperature compensation rate	-2mv/℃/2V(default)
Operating temperature	-10℃-+65℃
IP grade	IP21
Net weight	2.40kg	2.43kg	2.43kg	4.09kg	4.13kg	4.18kg
Gross weight	2.75kg	2.85kg	2.85kg	4.64kg	4.70kg	4.75kg
Electromagnetic compatibility	correspond with EN61000,EN55022,EN55024
Communication	Rs485 optional
Altitude	≤3000meter
Product size	25524699.8mm			337274107.7mm
