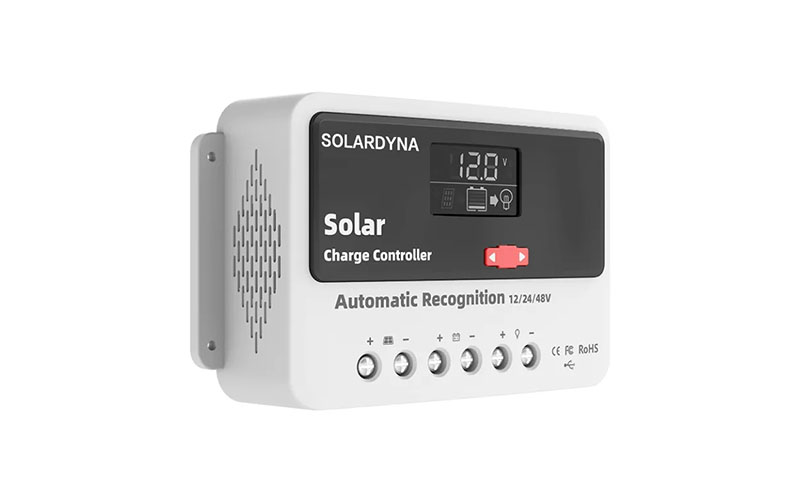

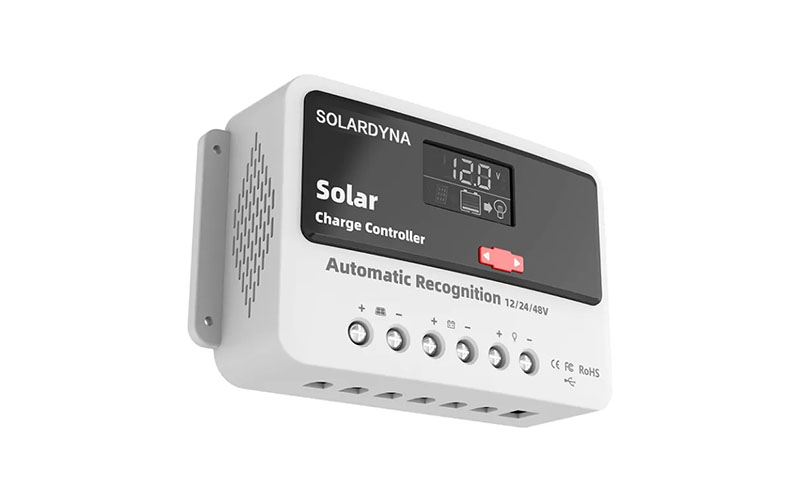

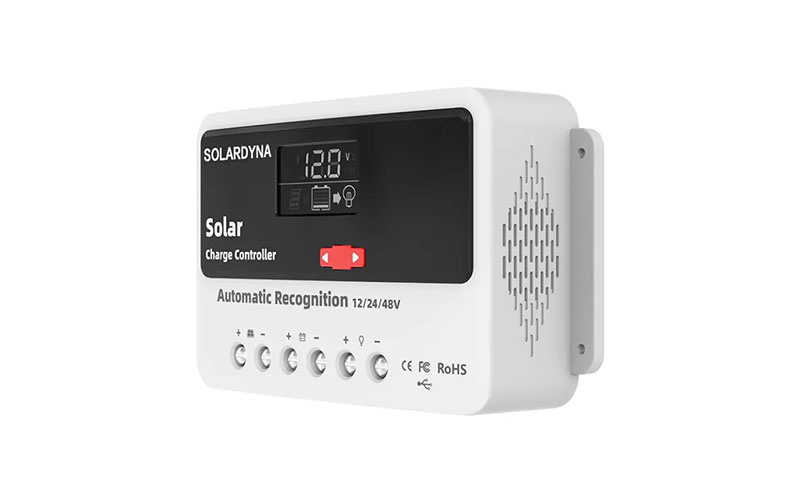

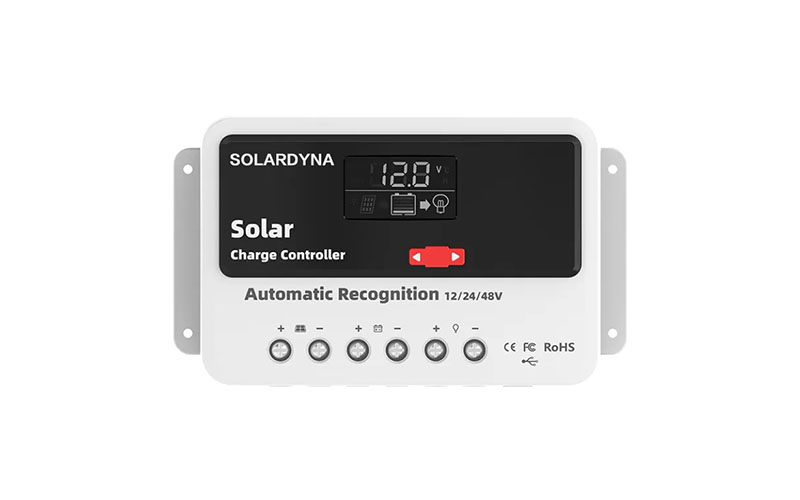

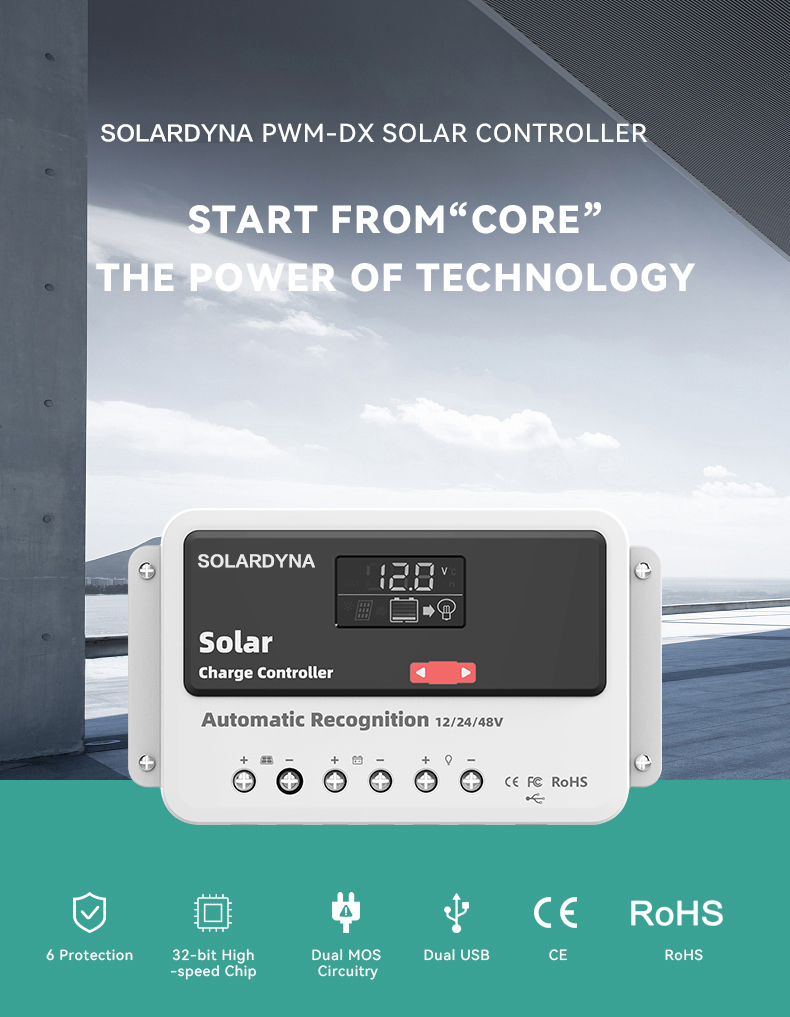

PWM-DX Solar Charge Controller

12V/24V/48V/Automatically adaptation

10A 20A 30A 40A 50A 60A

SolarDyna solar charging controller supports 12V/24V/48V automatic identification and is compatible with a variety of batteries. It has 6 protections such as overcharge and over-discharge, uses a 32-bit high-speed chip, and dual MOS circuit. It has 3 charging modes: fast charge, balanced charge, and floating charge, and is widely used in a variety of off-grid solar scenarios.

INQUIRY NOW

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

Description

►Product Features

●Upgrade Chip

●3-Stage Charging

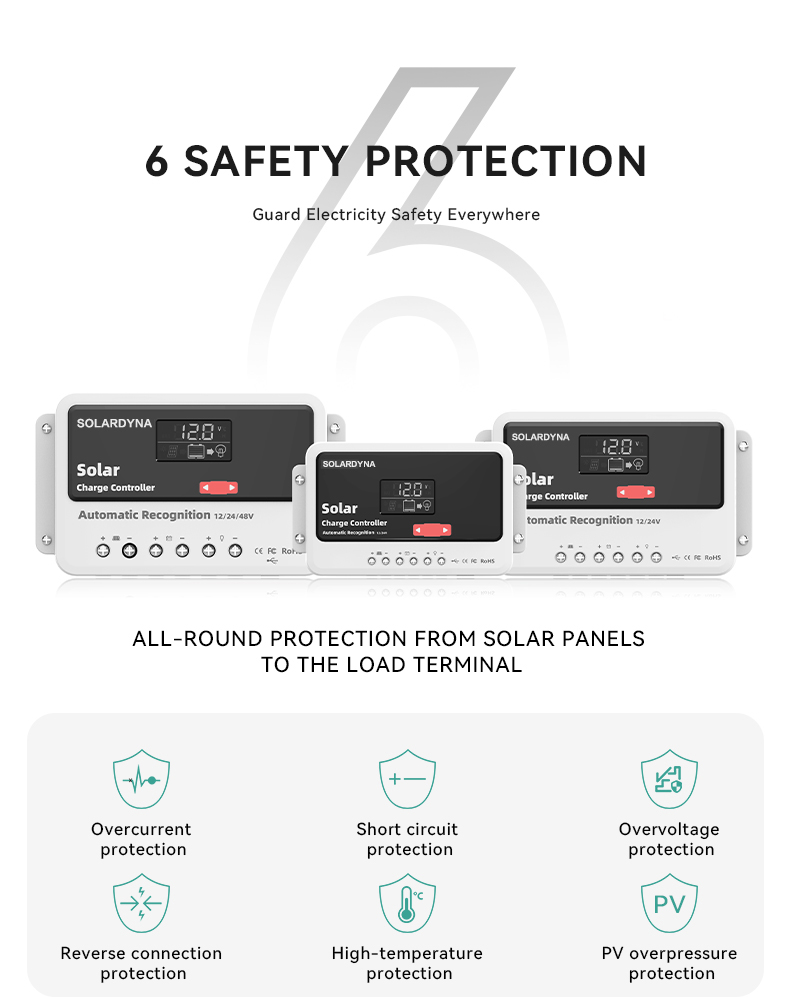

●6 Protection

●Dual MOS Circuitry

●Circuit Protection

●Support Customization

●32-bit High-speed Chip

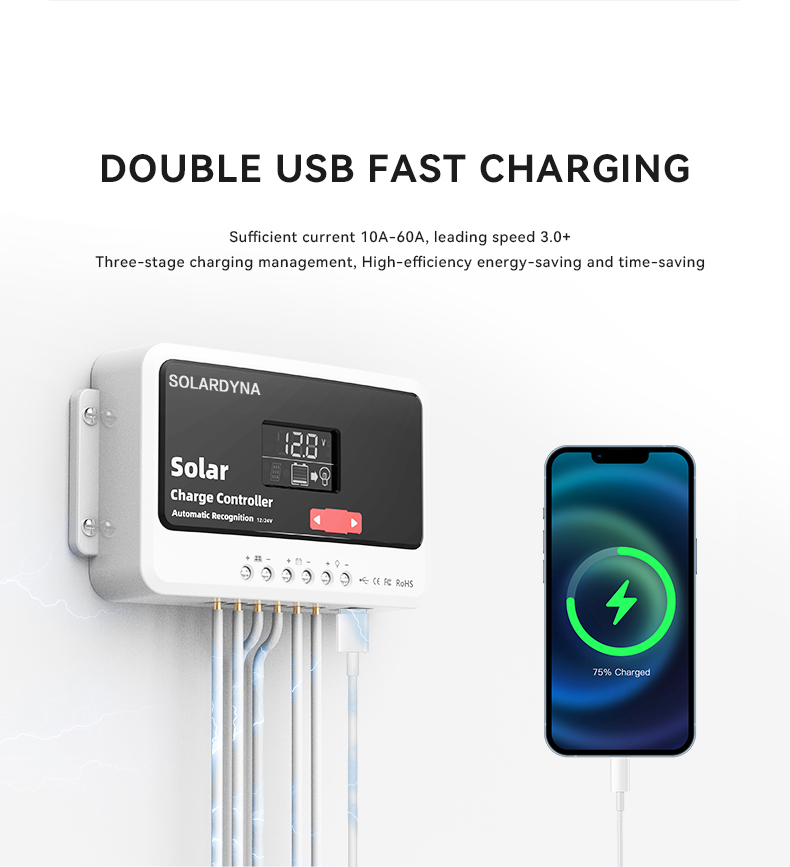

●Dual USB

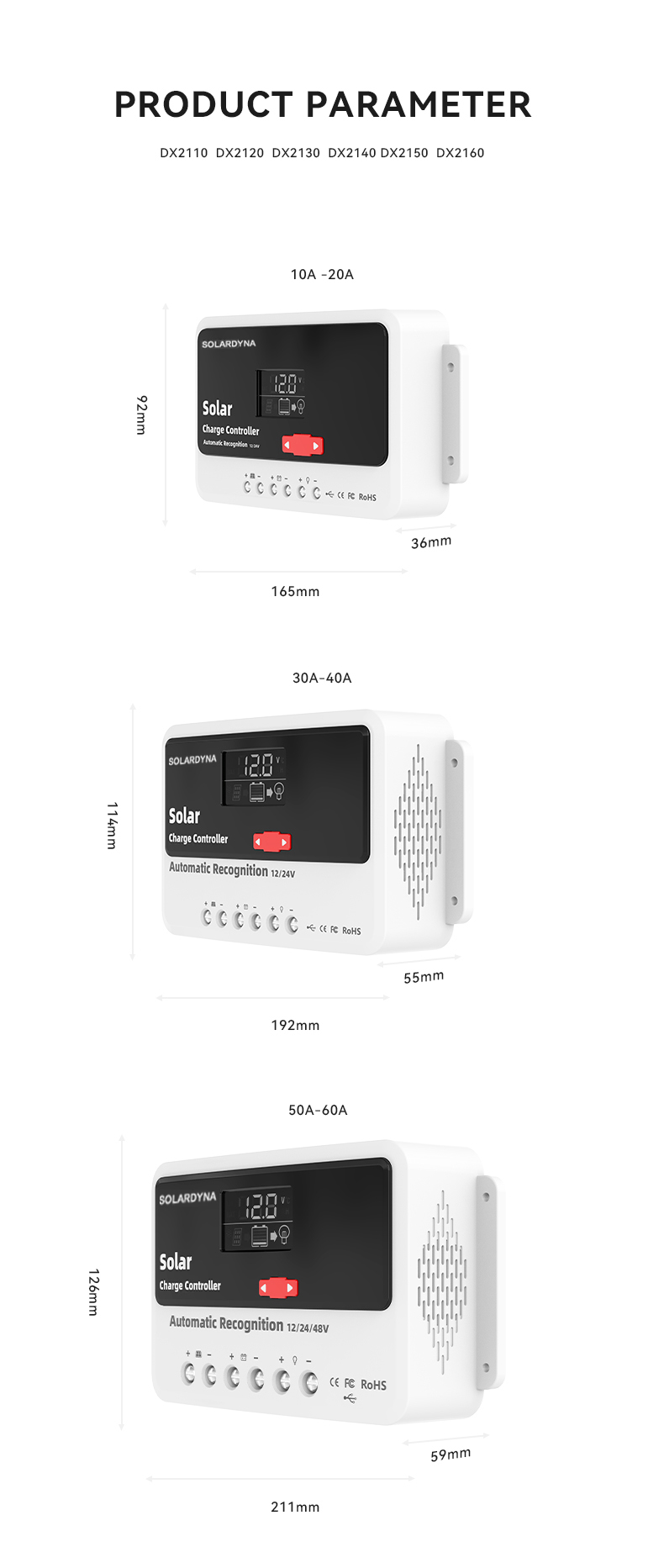

►Product Parameters

Model	DX2110	DX2120	DX2130	DX2140	DX2150	DX2160
System Voltage	12V/24V/Automatic adaptation				12/V24V/48V/Automatically adaptation
Rated Charge Current	10A	20A	30A	40A	50A	60A
Rated Discharge Current	10A	20A	30A	40A	50A	60A
Maximum Pv Input Voltage	12V systems >28V protection < 25V recovery, 24V systems >53V protection < 50V recovery,				12V system > 28V protection < 25V recovery, 24V system > 53V protection < 50V recovery, 48V system > 100V protection < 97V recover
Charging Method	Default PWM charging, b04/b05 can be set to on-off charging
Usb Output	3A
Standby Cumrent	<10mA
Battery Type	b01 sealed lead-acid batteries	b02 gel-type lead-acid batteries	b03 open lead-acid batteries	b03 open lead-acid batteries	b05 lithium iron phosphate batter
High Voltage Protection Hvd	16V
Boost Charging Voltage	14.4V	14.2V	14.6V	12.6V	14.6V
Equalize Charging Voltage	14.6V	/	14.8V	/
Boost Charge Retum Voltage	13.2V			/
Discharge Recovery Voltage	12.6V		10.5V	12.6V
Discharge Cutoff Voltage	11.1V		9.5V	11.1V
Enhanced Charging Time	2H			/
Equalize Charging Time	2H	/	2H	/
