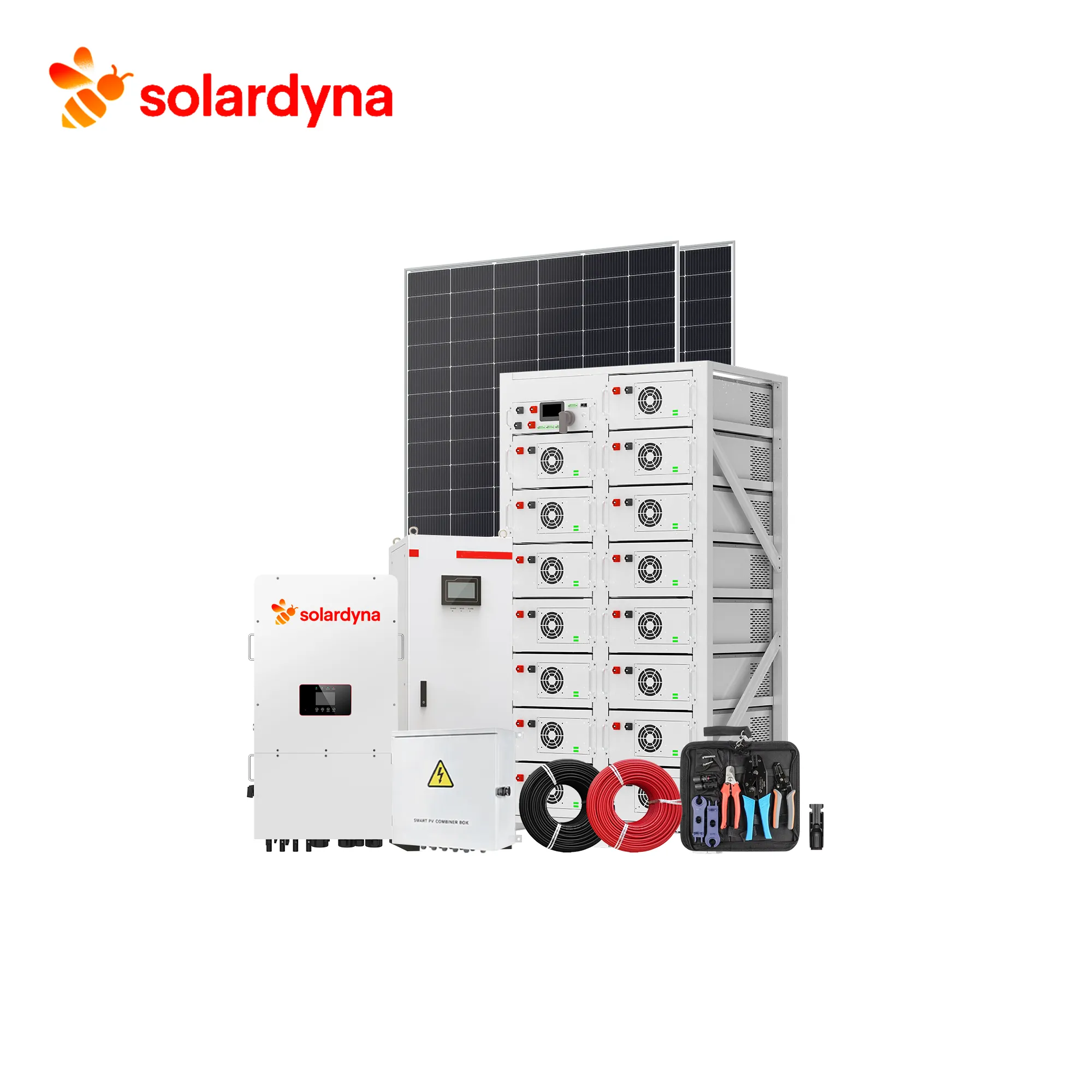

150kW High Voltage Commercial & Industrial Energy Storage System
High Voltage Lithium-ion BESS for Industrial & Solar Energy Integration
A fully integrated high voltage commercial and industrial energy storage system with 150 kW rated power and 430 kWh capacity, designed to optimize solar energy utilization, improve grid reliability and support hybrid off-grid/grid applications. Engineered with advanced LiFePO₄ batteries, robust BMS, and high-efficiency power conversion, this BESS solution delivers reliable performance for commercial, industrial and large-scale renewable projects.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Key Advantages of 150kW 430kWh Commercial Energy Storage System
High Voltage 768V Architecture for Superior Efficiency
The 150kW 430kWh commercial energy storage system adopts a high-voltage 768V DC architecture, reducing current loss and improving overall system efficiency. Compared with low-voltage systems, high-voltage design ensures better power transmission, lower cable loss, and enhanced performance for large-scale industrial applications.
430kWh LiFePO₄ Battery with Long Cycle Life
Built with advanced LiFePO₄ (Lithium Iron Phosphate) battery cells, this commercial BESS provides enhanced safety, thermal stability, and long service life. The 430kWh battery capacity supports peak shaving, load shifting, and backup power for commercial and industrial facilities.
Integrated 150kW PCS with Smart Energy Management
The integrated 150kW power conversion system (PCS) enables seamless energy flow between solar panels, battery storage, and the utility grid. It supports hybrid solar integration, ensuring optimized energy dispatch and improved return on investment for C&I projects.
IP65 Outdoor Cabinet Design with Air Cooling System
Designed for outdoor installation, this industrial energy storage system features an IP65 protection rating and intelligent air-cooling thermal management. The robust cabinet structure ensures stable performance under harsh environmental conditions.
Scalable & Flexible for Commercial and Industrial Applications
The 150kW 430kWh commercial energy storage system supports grid-connected and off-grid configurations. It is ideal for:
-
Peak shaving
-
Demand charge management
-
Solar self-consumption optimization
-
Emergency backup power
This flexibility makes it a reliable solution for factories, commercial buildings, industrial parks, and renewable energy projects.
Technical Specifications of 150kW 430kWh Commercial Energy Storage System
The 150kW 430kWh Commercial Energy Storage System is designed for industrial and commercial energy management applications. This high voltage battery energy storage system (BESS) integrates LiFePO₄ battery technology, intelligent BMS, and a 150kW power conversion system to deliver stable performance, high efficiency, and long-term reliability.
Below are the detailed technical specifications of this high voltage commercial energy storage system.

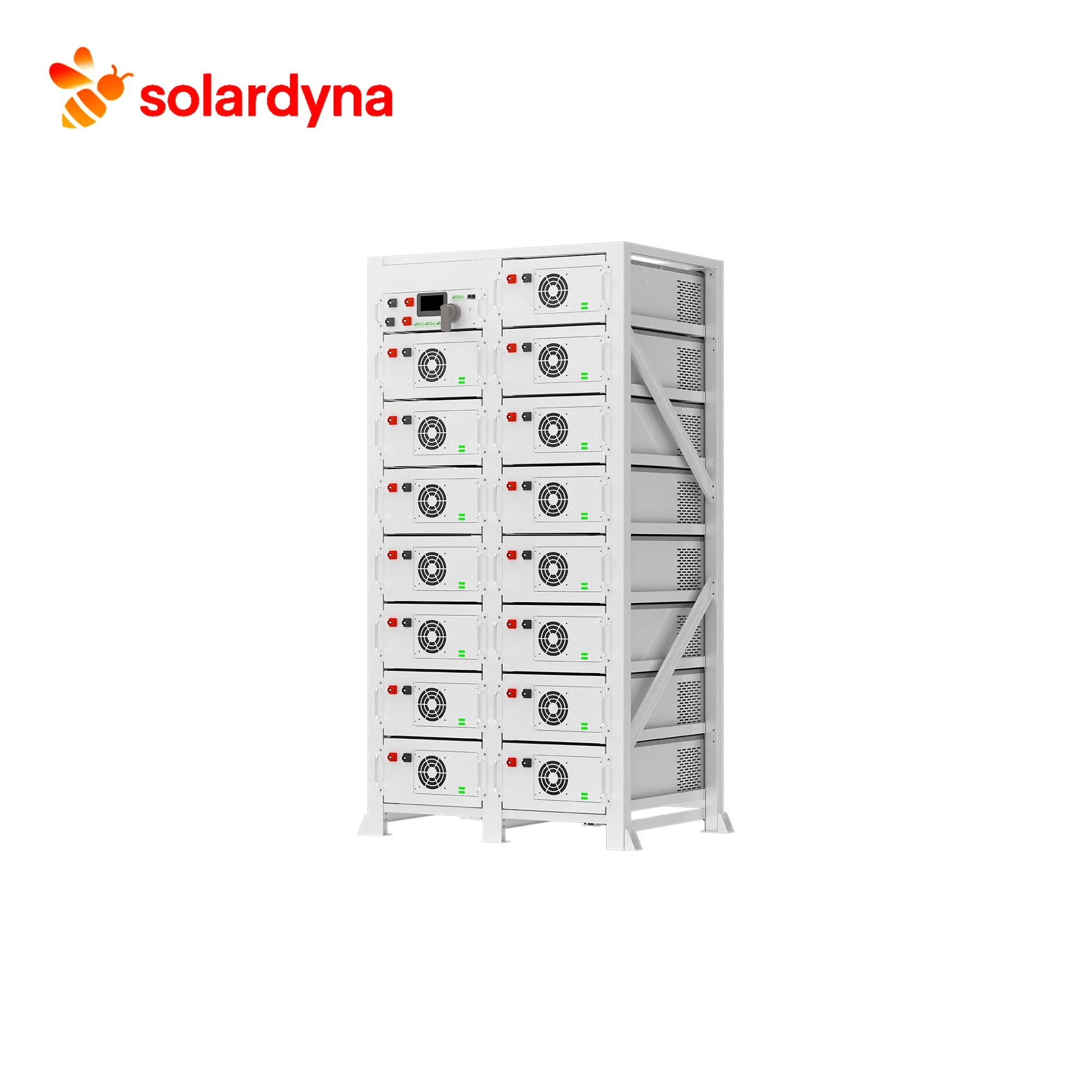

Battery System Specifications
-
Battery Capacity: 430kWh
-
Battery Type: Lithium Iron Phosphate (LiFePO₄)
-
Nominal Battery Voltage: 768V DC
-
Battery Architecture: High Voltage Modular Design
-
Cycle Life: ≥6000 cycles (80% Depth of Discharge)
-
Battery Management System (BMS): Integrated intelligent BMS with over-voltage, over-current, short-circuit and thermal protection
The 430kWh LiFePO₄ battery system ensures high safety standards, long service life, and stable operation for commercial and industrial battery storage projects.
|
|
 |
 |
| High-voltage stacked battery | High-voltage 3-phase inverter | 610W Mono Solar Panel | PV Combiner Box |
| 1.Rated Capacity:280Ah | 1.75KW/220V/380V 50HZ | 1.Maximum Power-Pmax (Wp):610W | 1.Combiner Box: 5 in 5 |
| 2.Rated Voltage:768V | 2.Max. DC Input Voltage (V):1000 | 2.Maximum Power Voltage-Vmpp (V):43.27 | 2.Waterproof IP65 |
| 3.Max. Charge Current:140A | 3.No.of MPPT Trackers:3 | 3.Maximum Power Current-Impp (A):14.10 | 3.Max Output Voltage: 1000V |
| 4.90%DOD | 4.Max. Efficiency:97.6% | 4.Module Efficiency (%):23.6% | 4.DC Output Circuit Breake: Yes |
| 5.Communication:RS485/CAN | 5.Monitoring Mode:WIFI, APP | 5.Number Of Cells:144 cells | 5.Lightning Protection: Yes |
| 6.Work Temperature Range:Charge:0℃~55℃ Discharge:-15℃~60℃ | 6.Protection Degree:IP65 |
 |
 |
 |
 |
| PV Cable | Solar PV Crimping Tool Kit | Battery Cable | MC4 Solar Cable Connector |
| 1.PV Cable：4m㎡ | 1.Wire Stripper | 1.DC450V/750V 25m㎡ /DC1000V/70m㎡ | 1. Rated Voltage: 1000VDC |
| 2.Withstanding large temperature range | 2.Connector Spanner Wrench | 2. Material: Pure Copper | 2. Waterproof Protection: IP67 |
| 3.Humidity and water resistance | 3.MC4 Solar Cable Connector：1000VDC | 3.Temperature Rating:-40°C-120°C | |
| 4.UV resistance | |||
| 5.Acid and alkali resistance | |||
| 6.Ozone resistance |

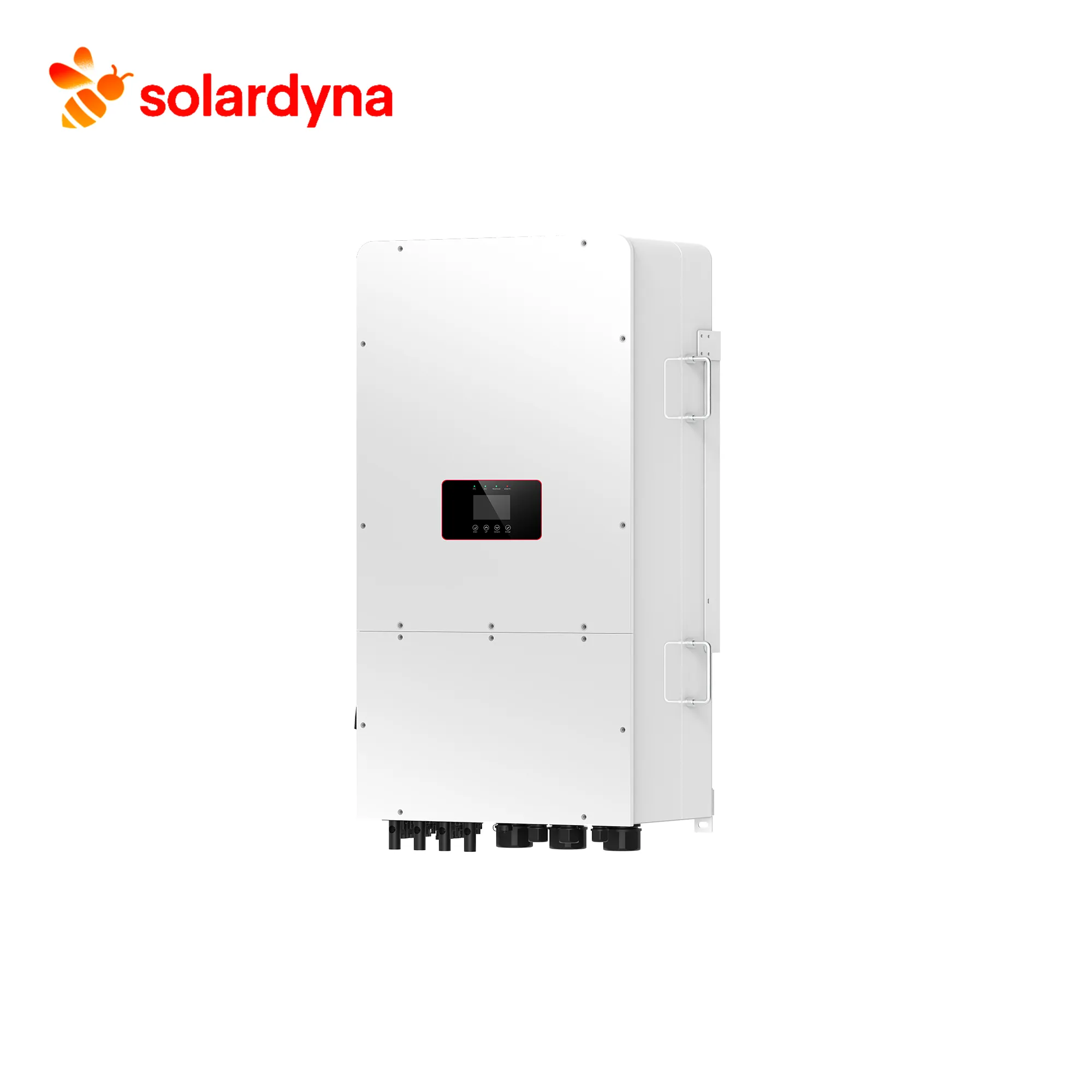

Power Conversion System (PCS) Specifications
-
Rated Output Power: 150kW
-
AC Output Voltage: 380V / 400V Three-Phase
-
Grid Frequency: 50Hz / 60Hz
-
Power Factor: Adjustable
-
System Efficiency: ≥97%
-
Solar Compatibility: Hybrid grid and solar integration supported
The integrated 150kW PCS enables efficient energy conversion between solar PV, battery storage, and the utility grid, making this commercial BESS ideal for peak shaving, load shifting, and energy cost optimization.
Environmental & Protection Specifications
-
Protection Level: IP65
-
Cooling Method: Intelligent Air Cooling System
-
Operating Temperature Range: -20°C to +55°C
-
Installation Type: Outdoor Cabinet Design
-
Noise Level: ≤65dB
The IP65-rated outdoor cabinet design ensures durability in demanding industrial environments while maintaining optimal thermal management performance.
Communication & Monitoring Specifications
-
Communication Interfaces: RS485 / CAN
-
Energy Management Compatibility: Supports EMS integration
-
Remote Monitoring: Available
The system supports standard communication protocols for seamless integration into commercial energy management systems and remote monitoring platforms.
Application Scenarios of 150kW 430kWh Commercial Energy Storage System
The 150kW 430kWh Commercial Energy Storage System is engineered to meet the growing demand for reliable, efficient, and scalable commercial and industrial energy storage solutions. With its high voltage 768V battery architecture and integrated 150kW power conversion system (PCS), this BESS solution supports solar integration, grid stability, and long-term energy cost optimization.
Peak Shaving & Demand Charge Management
This commercial energy storage system enables businesses to reduce peak demand charges by storing electricity during off-peak periods and discharging during high-demand hours.
By implementing peak shaving strategies, factories, commercial buildings, and industrial facilities can significantly lower operational electricity costs while improving overall energy efficiency.
Solar Self-Consumption & Renewable Energy Integration
When combined with photovoltaic (PV) systems, the 150kW 430kWh high voltage battery energy storage system maximizes solar self-consumption.
Excess solar energy generated during the day is stored in the 430kWh LiFePO₄ battery and used during evening hours or low-generation periods, improving renewable energy utilization and accelerating return on investment for commercial solar projects.
Reliable Backup Power for Industrial Operations
This industrial battery storage system provides stable backup power during grid outages or unstable power supply conditions.
With 150kW rated output, it can support critical commercial and industrial loads such as production equipment, office systems, data infrastructure, and essential facility operations.
Load Shifting & Energy Cost Optimization
The 430kWh commercial battery storage system allows businesses to shift energy consumption to lower-tariff periods.
By charging during low-cost hours and discharging during peak tariff periods, companies can optimize energy usage and stabilize internal power distribution.
Industrial Parks & Distributed Energy Projects
The 150kW commercial energy storage system is ideal for industrial parks, manufacturing plants, logistics centers, and distributed renewable energy installations.
Its IP65-rated outdoor cabinet design and intelligent air cooling system ensure stable operation in demanding industrial environments.
Typical Application Industries
-
Manufacturing facilities
-
Commercial office buildings
-
Industrial parks
-
Logistics and warehouse centers
-
Renewable energy integration projects
-
Microgrid and distributed energy systems
Frequently Asked Questions About 150kW 430kWh Commercial Energy Storage System
1. What applications is the 150kW 430kWh commercial energy storage system suitable for?
This commercial energy storage system is designed for industrial and commercial applications such as peak shaving, demand charge management, solar self-consumption, backup power supply, and distributed energy projects. It is ideal for factories, industrial parks, office buildings, and logistics centers seeking energy cost optimization and grid stability.
2. What battery technology is used in this 430kWh energy storage system?
The system uses high-safety Lithium Iron Phosphate (LiFePO₄) battery cells. LiFePO₄ technology provides enhanced thermal stability, long cycle life (≥6000 cycles), and improved operational safety compared to conventional lithium-ion battery chemistries, making it suitable for commercial and industrial battery storage projects.
3. Is this high voltage BESS compatible with solar PV systems?
Yes. The 150kW commercial battery energy storage system supports hybrid solar integration. It can store excess solar power generated during the day and discharge it during peak demand periods, maximizing renewable energy utilization and improving project ROI.
4. Can the 150kW commercial energy storage system operate during grid outages?
Yes. The system can provide backup power for critical commercial and industrial loads during grid interruptions. It supports essential equipment such as production lines, IT systems, lighting, and HVAC depending on system configuration.
5. What is the voltage architecture of this commercial battery storage system?
This system adopts a high voltage 768V DC architecture. High voltage design reduces current loss, improves transmission efficiency, and enhances overall system performance for medium and large-scale commercial applications.
6. What protection and safety features are included in this industrial energy storage system?
The system integrates an intelligent Battery Management System (BMS) with multi-layer protection including over-voltage, over-current, short-circuit, and temperature protection. The IP65-rated outdoor cabinet and air cooling system further ensure stable operation in demanding environments.
7. Does the system support remote monitoring and energy management integration?
Yes. The commercial BESS supports RS485 and CAN communication interfaces and can be integrated with Energy Management Systems (EMS) for real-time monitoring, remote diagnostics, and optimized energy dispatch.
8. What is the expected service life of the 150kW 430kWh commercial energy storage system?
With ≥6000 charge/discharge cycles at 80% depth of discharge, the LiFePO₄ battery system is designed for long-term commercial operation. Proper installation and maintenance can ensure stable performance over many years of industrial use.
