Customized 300W 500VA Modified Sine Wave Power Solar Inverter Manufacturers From China

Customized 300W 500VA Modified Sine Wave Power Solar Inverter Manufacturers From China | Solardyna

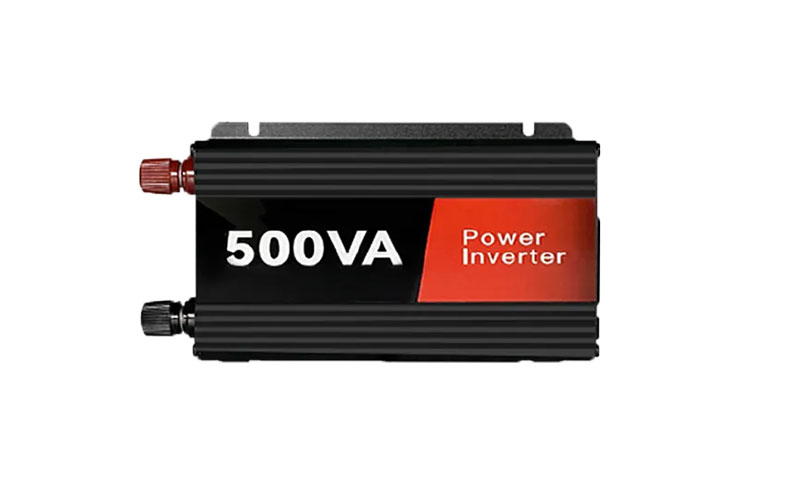

DF-MK series modified sine wave inverter 500VA, using imported control chip and high-precision circuit board, the highest efficiency is 93%, intelligent silent fan automatically starts and stops according to load and temperature. Support 12V, 24V DC input, adapt to lead-acid / lithium battery, output 220V/110V AC, frequency 50Hz/60Hz.

Input Voltage:12V/24V/48V/60V/72V
Output Voltage:220V/230V/240V
Output Current:3-30A
Output Frequency:50Hz/60Hz
Size:Different Wattage, Different Size
Weight:0.77/0.96/2.2KG
Transfer Efficiency:≥90%

INQUIRY NOW

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

Description

►Product Features

* POWER BRIGHT POWER INVERTER – Modified Sine Wave Home Car Inverter converts 12V / 24V / 48V / 60V / 72V DC IS available to 220V AC Portable power station.

* ENGINEERED TO PERFORM – Power inverter connects directly to a 12 Volt DC battery to power appliances, power tools, circular saws, mini fridge, coffee machines, nebulizer machine , oxygen concentrator machine and much more.

* PROTECTION APPROVED – This inverter has all the protections that you will need. Overload, over voltage, under voltage, high temperature and short circuit.

►Product Parameters

Model	DF-M03K		DF-M05K		DF-M08K
Dc input
Dc input	12V	24V	12V	24V	12V	24V
Maximum Eficiency	93%
Battery Type	Lead acid/Lithium battery
Rated Power	300W		500W		800W
AC Voltage	220V/110V
Frequency	50Hz/60Hz
Wave Form	Modified sine wave
Input Protection	anti-reverse connection (battery)
Warning of low voltage	10.5V±0.5V(24V)2(48V) 4
Low voltage protection	10V±0.5V(24V)2(48V)4
Low voltage recovery	12.4V+0.5V(24V)2(48V)4
High voltage protection	15.0V±0.5V(24V)2(48V)4
High voltage recovery	14.5V±0.5V(24V)2(48V)4
Output Short Circuit Protection	After the fault is eliminated,it can be rebooted
Overload Protection	110%≤Load<125%,5 S shutdown;125%≤Load,shut down immediately;
Output Temperature Protection	Heat dissipation temperature>90℃
Operating Environment	an arid environment
Operating Temperature	0℃~40℃
Humidity	0-80%

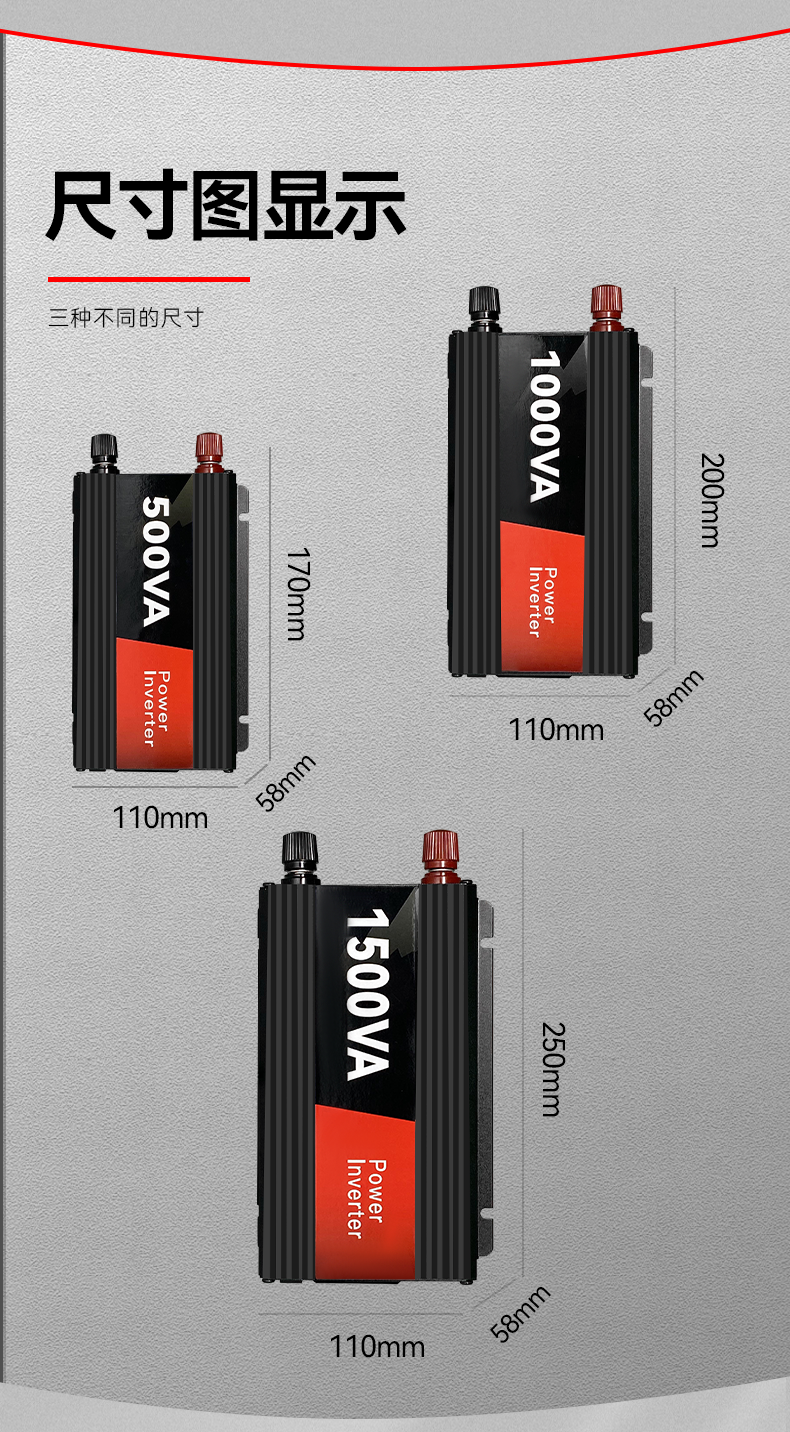

Dimension(mm)	17011058		20011058		25011058
Remote Control	Standard Configuration
USB	5v0.5A(Standard),5v2A(0ptional),QC3.0 18W(Optional)
