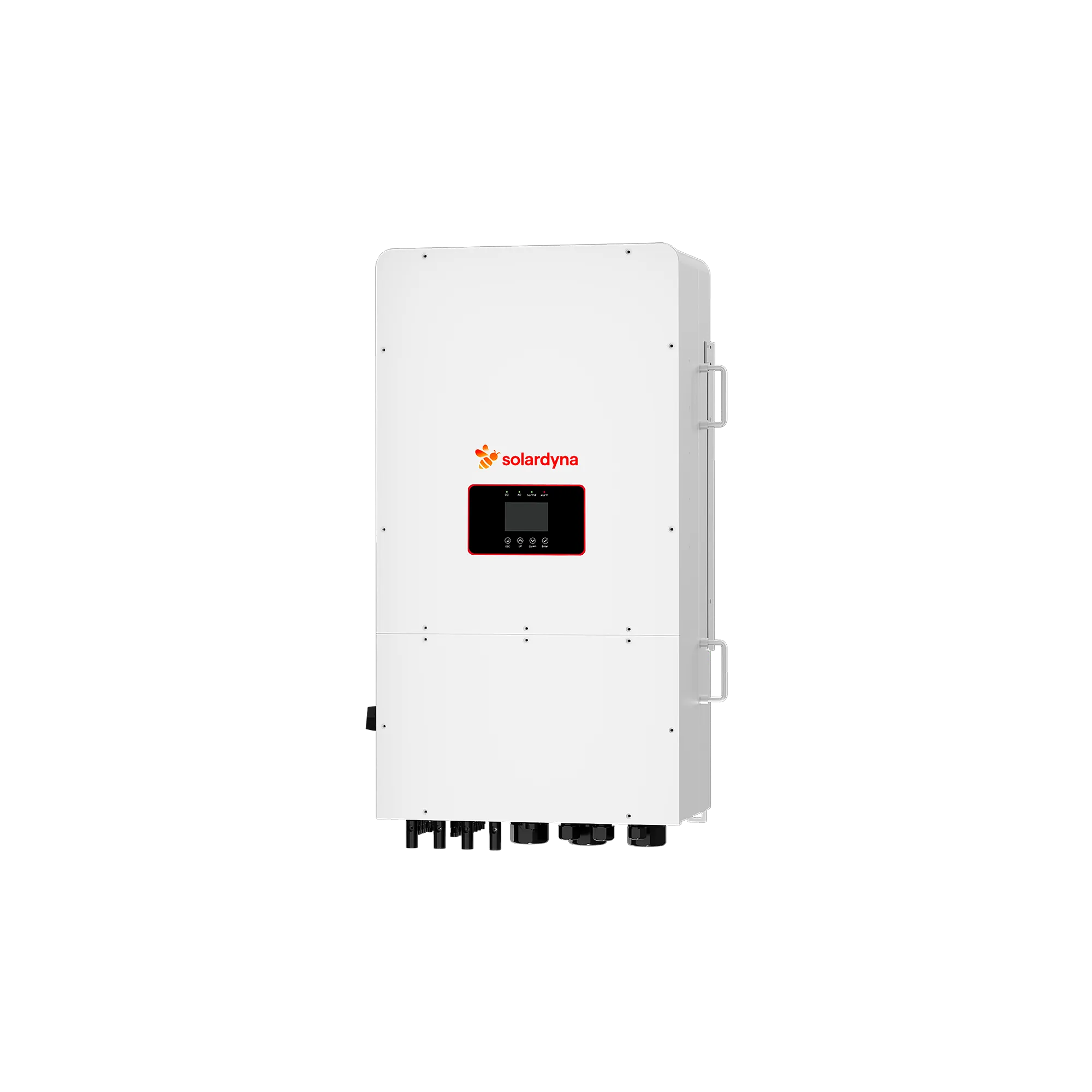

10kW 20kW 30kW 40kW 50kW 60kW High Voltage Three Phase High Voltage Hybrid Solar Inverter
SolarDyna Three Phase High Voltage Hybrid Solar Inverter is available in 10kW, 20kW, 30kW, 40kW, 50kW, and 60kW models.
Three-Phase Hybrid Operation: Supports both on-grid and off-grid modes with seamless switchover.
Wide Battery Compatibility: Works with 160V to 700V high voltage lithium batteries.
Parallel Expansion: Connect up to 10 units in parallel to scale your system as needed.
High Efficiency: Conversion efficiency up to 97.6%, reducing energy loss.
Direct Generator Input: Connect a diesel generator directly — no external converter required.
Ideal for: Commercial buildings, large homes, industrial energy storage, and C&I applications.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Power Your Business with Our Three Phase High Voltage Hybrid Solar Inverter (10kW–60kW)
Our three-phase high-voltage hybrid solar inverter is designed for commercial buildings, large homes, and industrial energy storage systems.
It provides reliable and high-capacity power management. This three-phase hybrid inverter supports power from 10kW to 60kW. It can handle solar input up to 78,000W, works with high voltage batteries (160–700V), and delivers a peak conversion efficiency of 97.6%.
You can use it in many different places, like, warehouses, multi-story apartment buildings, and off-grid facilities. You can run it on-grid, off-grid, or in hybrid mode — all from one unit.
Key Features & Benefits

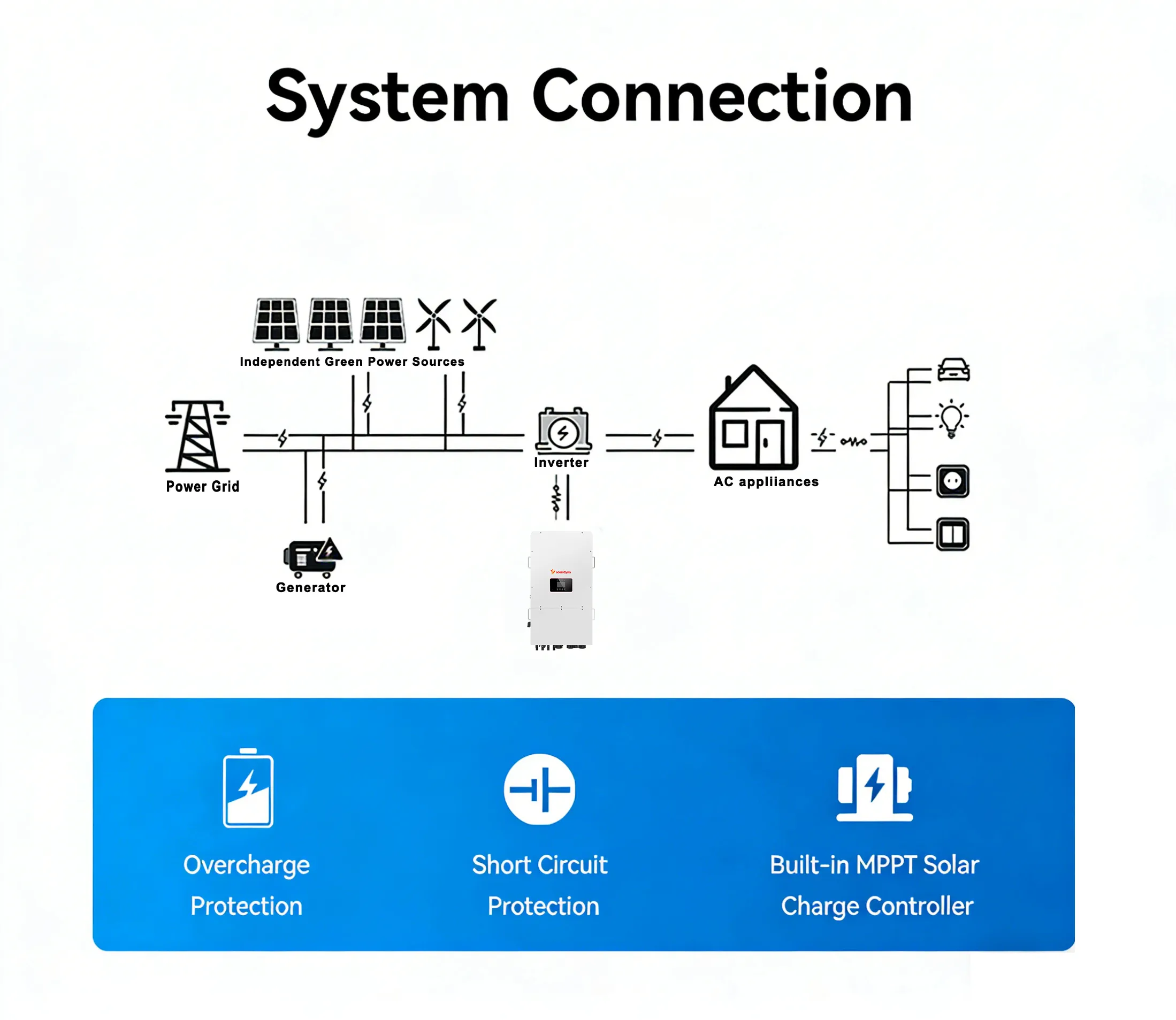

Three-Phase Hybrid Operation for On-Grid and Off-Grid Use: This three-phase solar inverter supports grid-tied, off-grid, and hybrid operation.It prioritizes solar power, stores surplus energy in batteries, and pulls from the grid only when necessary. If the grid goes down, the system automatically switches to backup mode, keeping your facility running without interruption.
High Voltage Battery Compatibility (160V–700V): Low-voltage inverters are usually limited to 48V battery banks. However, this high-voltage hybrid inverter supports a battery voltage range from 160V to 700V. This means you can use thinner cables, lower current, and reduce energy loss. This is very helpful for large commercial installations with long cables.
Smart Monitoring via WiFi and App: Tracking your system’s real-time performance using the built-in WiFi and app. It shows power generation, battery status, grid usage, and load consumption.
Direct Diesel Generator Connection: You can connect a diesel generator directly to the inverter. You do not need an extra converter.
Scalable Power with Parallel Operation (Up to 10 Units): You can start with one unit and add more later as your needs grow. You can connect up to 10 three-phase hybrid inverters in parallel for off-grid use. This gives you a total output capacity of up to 600kW. It makes it easy to scale from a small commercial setup to a full industrial energy storage system.
97.6% Conversion Efficiency: Efficiency is very important at this power level. Our inverter converts up to 97.6% of solar power into usable AC power. This means less energy is wasted and you get more power from your solar panels.

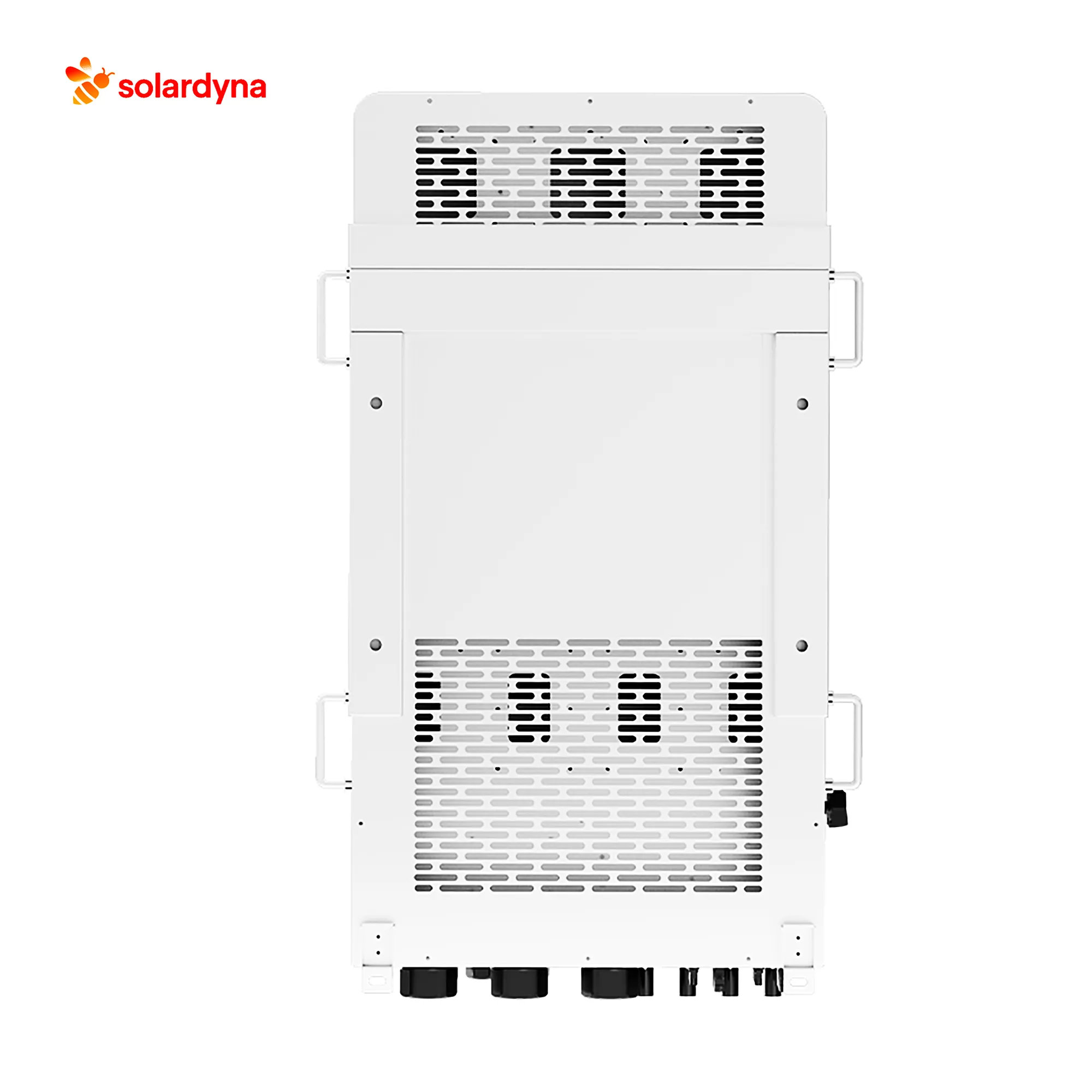

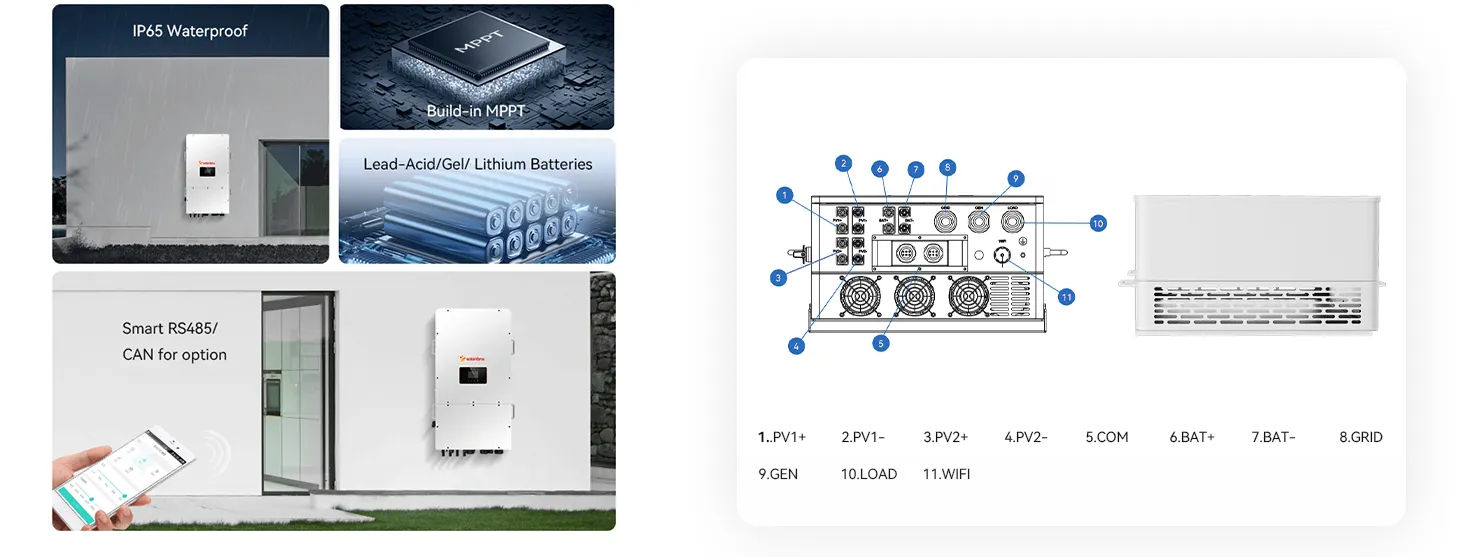

IP65 Protection with Intelligent Cooling: Rated IP65. It is withstands dust and water jets, so it totally suitable for outdoor installation. The inverter also uses an intelligent cooling system. The fan speed adjusts based on the internal temperature. This helps reduce noise and extend the life of internal components.
6 Configurable Time Zones for Charge/Discharge: You can set up to 6 time periods per day to control when the battery charges/discharges. You can charge the battery during off-peak hours and discharge it during peak electricity pricing. This can help reduce your energy costs.

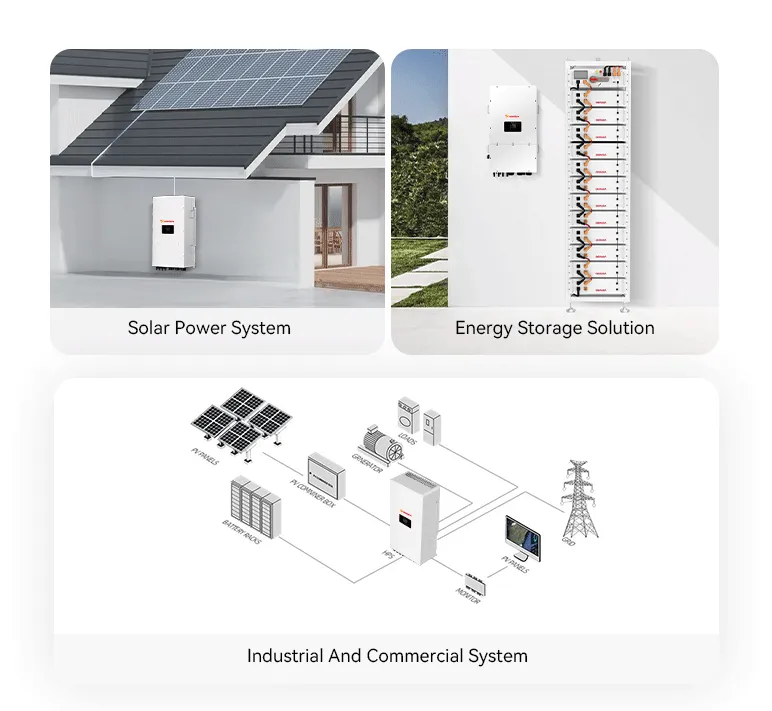

Applications
- Commercial buildings and shopping centers often want to lower electricity costs and more reliable power.
- Industrial facilities and warehouses rely on stable and high-capacity power.
- Large residential complexes and apartment buildings often use shared solar energy systems, so energy management is important in these environments.
- Agricultural operations, remote sites and off-grid installations requiring independent power generation.
- New commercial solar projects and upgrade existing solar arrays.
More Details
Technical Specifications
| Model | 8K | 10K | 12K | 15K | 20K | 30K | 40K | 50K | 60K |
| PV String Input Data | |||||||||
| Max. DC Input Power (W) | 10400 | 13000 | 15600 | 19500 | 26000 | 39000 | 52000 | 65000 | 78000 |
| Max. DC Input Voltage (V) | 1000 | ||||||||
| Start-up Voltage (V) | 180 | ||||||||
| Full Load DC Voltage Range (V) | 325-850 | 150-850 | |||||||
| Rated DC Input Voltage (V) | 600 | ||||||||
| Input Current (A) | 20+20 | 20+20 | 26+26 | 26+26 | 26+26 | 36+36+36 | 36+36+36 | 36+36+36+36 | 36+36+36+36 |
| Max. DC Short Circuit Current (A) | 30+30 | 30+30 | 39+39 | 39+39 | 39+39 | 55+55+55 | 55+55+55 | 55+55+55+55 | 55+55+55+55 |
| No. of MPPT Trackers | 2 | 3 | 4 | ||||||
| No. of Strings per MPPT Tracker | 1+1 | 2+2 | 2+2+2 | 2+2+2+2 | |||||
| AC Input/Output Data | |||||||||
| Rated AC Output Power (W) | 8000 | 10000 | 12000 | 15000 | 20000 | 30000 | 40000 | 50000 | 60000 |
| Max. AC Output Power (W) | 8800 | 11000 | 14400 | 16500 | 22000 | 33000 | 44000 | 55000 | 66000 |
| AC Input/Output Rated Current (A) | 12.2 | 15.2/14.5 | 18.2 | 22.8 | 30.4/29.0 | 45.5/43.5 | 60.7/58.0 | 75.8/72.5 | 91 |
| Max. AC Input/Output Current (A) | 13.4 | 16.7/16 | 19.2 | 25.0 | 33.4/31.9 | 50/47.9 | 66.7/63.8 | 83.4/79.8 | 100 |
| Three-phase Unbalanced Output Current (A) | 17.8 | 22 | 26.8 | 33.6 | 44.7 | 60 | 70 | 83.3 | 100 |
| Max. Continuous AC Passthrough (A) | 32 | 40 | 48 | 60 | 80 | 118 | 158 | 197 | 237 |
| Peak Power (Off Grid) | 1.5 times of rated power, 10 S | ||||||||
| Generator Input/Smart Load/AC Couple Current (A) | 12.2/32/12.2 | 15.2/40/15.2 | 18.2/48/18.2 | 22.2/60/22.2 | 30.4/80/30.4 | 45.5/118/45.5 | 60.7/158/60.7 | 75.8/197/75.8 | 91/237/91 |
| Power Factor | 0.8 leading – 0.8 lagging | 0.9 leading – 0.9 lagging | |||||||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac | ||||||||
| Grid Type | Three Phase | ||||||||
| Total Harmonic Distortion (THD) | <3% | ||||||||
| DC Current Injection | / | <0.5%In | |||||||
| Battery Input Data | |||||||||
| Battery Type | Lithium-ion | ||||||||
| Battery Voltage Range (V) | 160-700 | ||||||||
| Max. Charging Current (A) | 37 | 50+50 | |||||||
| Max. Discharging Current (A) | 37 | 50+50 | |||||||
| External Temperature Sensor | 1 | 2 | |||||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||||||
| Efficiency | |||||||||
| Max. Efficiency | 97.6% | ||||||||
| Euro Efficiency | 97.0% | ||||||||
| MPPT Efficiency | 99.9% | ||||||||
| Certifications and Standards | |||||||||
| Grid Regulation | IEC61727/62116, EN50549-1 | ||||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||
| General Data | |||||||||
| Operating Temperature Range (℃) | -25~+60℃, >45℃ Derating | -40~+60℃, >45℃ Derating | |||||||
| Cooling | Smart Cooling | ||||||||
| Noise (dB) | <55 dB | <70 dB | |||||||
| Communication with BMS | CAN | ||||||||
| Monitoring Mode | WIFI, APP | ||||||||
| Cabinet Size (mm) | 450Wx480Hx240D (Excluding connectors and brackets) | ||||||||
| Weight (kg) | 30 | 82.5 | |||||||
| Protection Degree | IP65 | ||||||||
| Warranty | 5 Years (10 Years Optional) | ||||||||
Why Choose Our Three Phase Hybrid Solar Inverter?
This Three Phase High Voltage Hybrid Solar Inverter brings together the features that commercial and large-scale residential projects actually need: wide battery compatibility, high conversion efficiency, straightforward parallel expansion, and outdoor-ready construction. Whether you’re looking to cut your facility’s electricity costs, set up a reliable backup power system, or build an off-grid energy solution from the ground up, this inverter is designed to handle the job.
Contact us today for pricing and technical support for your three phase hybrid solar inverter project.
