3.6KW 4.2KW 6.2KW MPPT All In One Off Grid Wifi Hybrid Solar Power Inverter Manufacturer
This is a multifunctional solar inverter, integrated with a MPPT solar charge controller, a highfrequency pure sine wave inverter and a UPS function module in one machine, which isperfect for off grid backup power and self-consumption applications. This inverter can workwith or without batteries.The whole system also need other devices to achieve complete running such as PV modules,generator, or utility grid. Please consult with your system integrator for other possible systemarchitectures depending on your requirements.
- Model Number: SD-Inverter 1.5-13.2KW
- Input Voltage：120-450VDC
- Output Voltage：208V/220V/230V /240V
- Output Current：80A Max
- APP：support
- Rated grid frequency(Hz)：50Hz/60Hz
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
The journey of this Off Grid Wifi Hybrid Solar Power Inverter begins with the integration of cutting-edge electronics and robust power components. Manufacturers source high-quality semiconductors, microcontrollers, and passive components to build the inverter’s core. The production process involves precision circuit board assembly, often using automated surface-mount technology (SMT) and through-hole soldering. Each unit undergoes rigorous testing, including burn-in tests, power output validation, and communication protocol checks (for the WiFi module) to ensure reliability and adherence to safety standards. The design emphasizes durability to withstand various environmental conditions, from extreme temperatures to dust and humidity.
►Product Features
● Pure sine wave Off Grid Wifi Hybrid Solar Power Inverter (Optional on/off Grid)
● Inverter can run without battery, One-key restorationto factory Settings
● Built-in Lithium battery automatic activation
● WIFI&GPRS available for IOS and Android
● Built-in MPPT Solar charge
● High PV input voltage range
● Built-in anti-dust kit for harsh environment
● Smart battery charge design to optimize battery life
►Product Parameters
| Model | 1.5KW | 3.6KW | 4.2KW | 5.5KW | 5KWBG | 6.2KW | 6.2KWBG | 13.2KW |
| AC Input | ||||||||
| Rated Intpat Voltage (VAC） | 208/220/230/240；L+N+PE | |||||||
| VoltageRange (VAC) | 90~280±3(narmal made):170~280±3(UPS mode) | |||||||
| Freeueney(Hz) | 50/60(Auto Adaptive) | |||||||
| AC Output | ||||||||
| Rated Capacity (kw) | 1.5 | 36 | 4.2 | 5.5 | 5 | 6.2 | 6.2 | 132 |
| Surge Power (kVA) | 3 | 7.2 | 8.4 | 11 | 10 | 12 | 12 | 26.4 |
| Voltage (VAC) | 208/220/230/240 | |||||||
| Power Factor(PF) | 1 | |||||||
| Frequency | 50/60Hz±0.1% | |||||||
| Switch Time (ms) | 10(normal mode)/10 (UPS mode) | |||||||
| Wave Form | Pure Sine Ware | |||||||
| Overload Capacity (Battery Mode) | 60s@102%~110% load; 10s@110%~130% load:3s@130%~150% load; 0.2s@>150% load | |||||||
| Max. Efficiency (Battery Mode) | 90%@ 12VDC | 92.7%@ 24VDC | 92.7%@ 24VDC | 93%@ 48VDC | 93%@ 48VDC | 93%@ 48VDC | 93%@ 48VDC | >93%@ 48VDC |
| Parallel Quantity | NA | NA | NA | NA | 9Max | NA | 9Max | 6Max |
| Charger (PV/AC) | ||||||||
| Solar Charger Type | MPPT | |||||||
| Max PV input Current/Power | 14A/1000W | 18A/5000W | 18A/5000W | 22A/6000W | 22A/6000W | 22A/6000W | 22A/6000W | 22A*2/5500W*2 |
| MPPT Range@Operating Voltage (VDC) | 20-100 | 40-450 | 40-450 | 120-450 | 120-450 | 120-450 | 120-450 | 120-450 |
| Max PV Open Circuit Voltage (VDC) | 125 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Max PV Charge Currant (A) | 60 | 100 | 100 | 100 | 80 | 100 | 60 | 150 |
| Max AC Charge Currant (A) | 60 | 100 | 100 | 80 | 80 | 80 | 80 | 150 |
| Max Charge Curmtent (PV+AC)(A) | 120 | 100 | 100 | 100 | 80 | 100 | 80 | 150 |
| Battery | ||||||||
| Rated voltage(VDC) | 12 | 24 | 24 | 48 | 48 | 48 | 48 | 48 |
| Floating Charge Voltage (VDC) | 13.5 | 27 | 27 | 54 | 54 | 54 | 54 | 54 |
| Overcharge Protection (VDC) | 15 | 30.5 | 30.5 | 61 | 61 | 61 | 61 | 60 |
| Battery Type | Lithium and Lead-acid | |||||||
| Interface | ||||||||
| HMI | LCD | |||||||

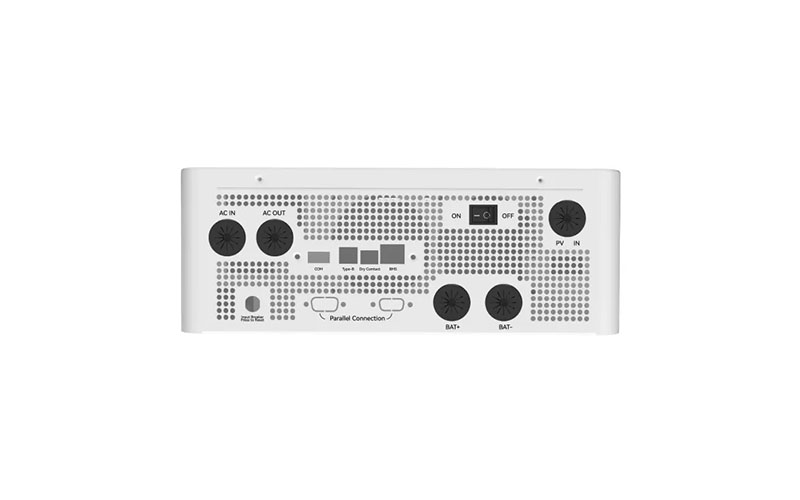

| Interface | RS485/USB | RS485/RS232/USB/Dry Contact | RS485/USB/Dry Contact | |||||
| Monitoring | NA | WiFi(Optional) | ||||||
| General Data | ||||||||
| Ingress Protection | IP20 | |||||||
| Opeiating Temperature | -10℃-50℃ | |||||||
| Relative Humisity | 5%~95%(Non-condensing) | |||||||
| Storage Tereperature | -10℃-50℃ | -15℃-60℃ | -10’℃-50℃ | -15℃-60℃ | -10℃-50℃ | -15℃-60℃ | -25℃-55℃ | |
| Net Weight (KG) | 3.54 | 6.25 | 8.73 | 20 | ||||

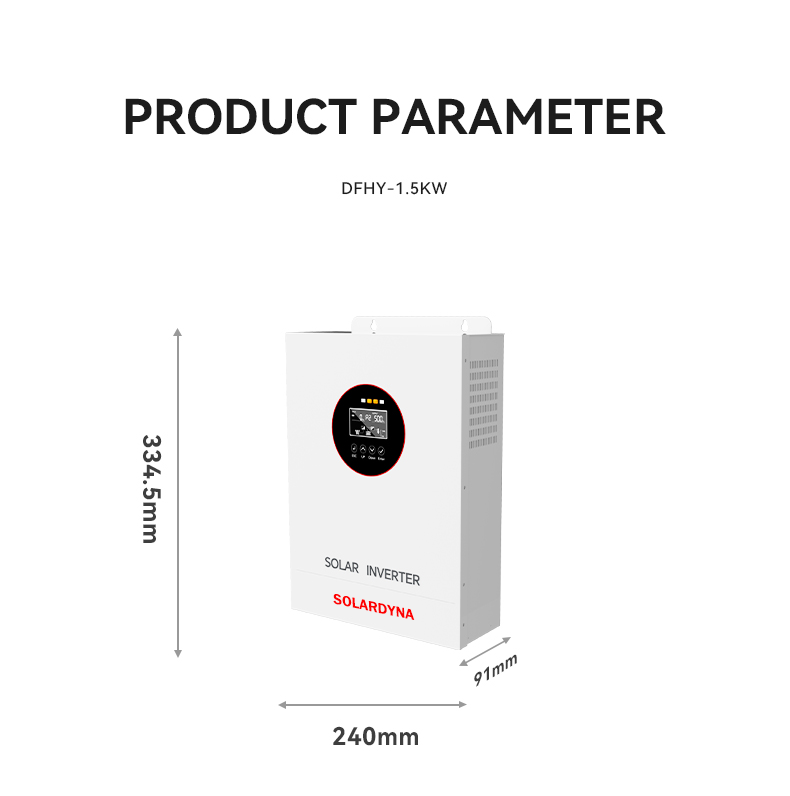

| Dimensions(W*H*D mm) | 334.53*240*91 | 440*290*100 | 470*300*110 | 550*365*130 | ||||
| Max. Operating Altitude | 4000m(Derating above 1000m) | |||||||

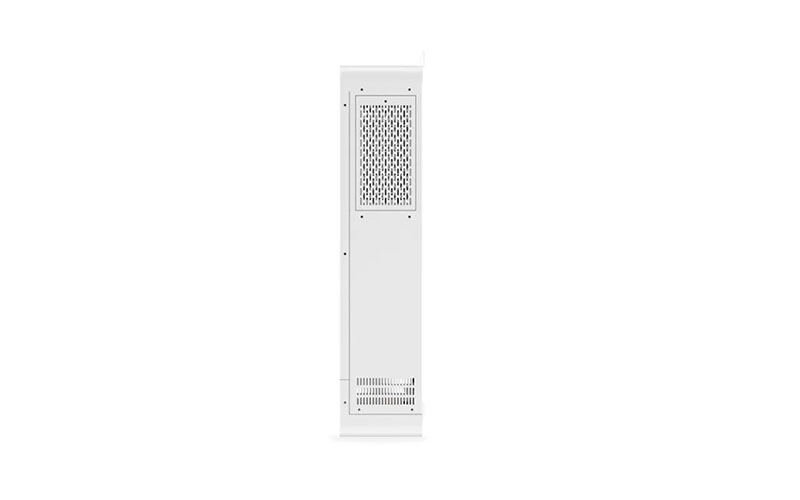

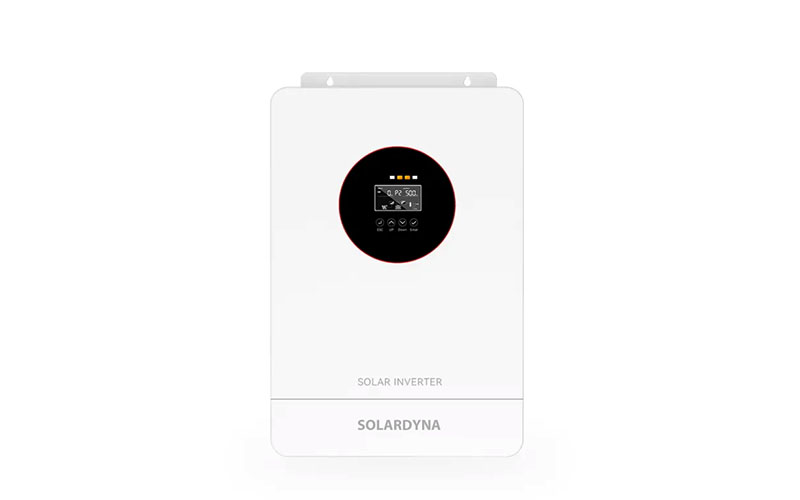

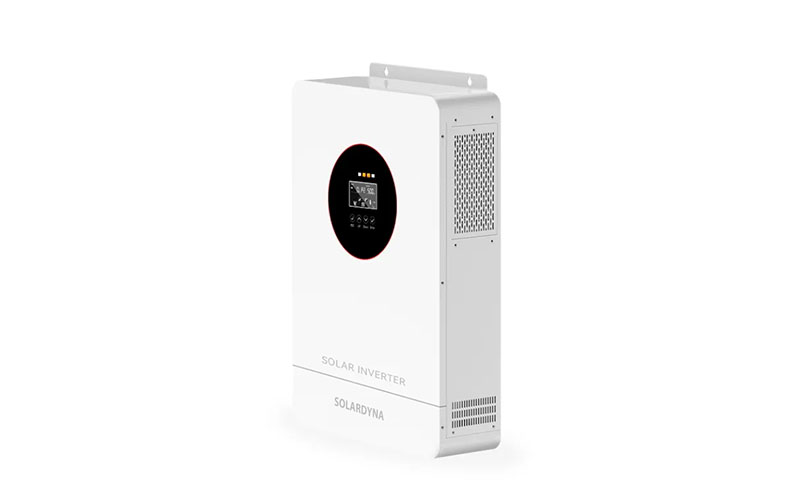

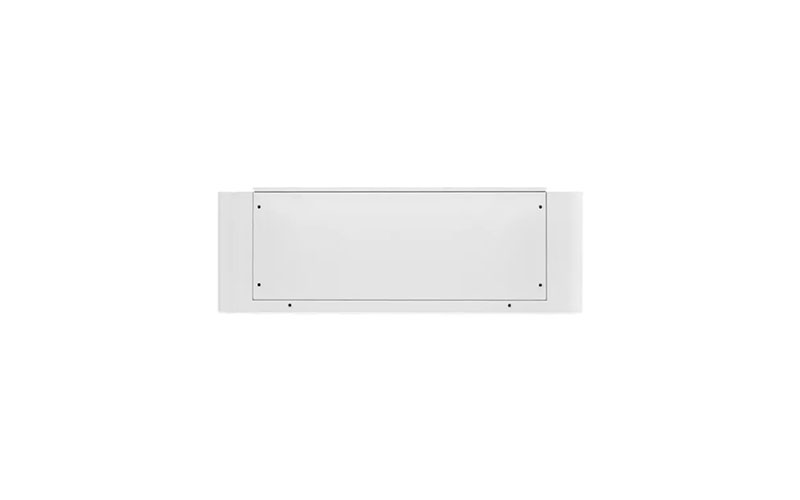

►Product Details
