All-In-One Off-Grid Wifi Hybrid Solar Inverter

Description





If you’re considering going solar, one of the most important components you’ll need is a solar inverter. A solar inverter converts the direct current (DC) electricity generated by your solar panels into alternating current (AC) electricity that can be used to power your home or business.



There are many different types of solar inverters on the market, but one of the most versatile and efficient options is the All-In-One Off-Grid Wifi Hybrid Solar Inverter. This type of inverter is designed to provide a complete solar solution, combining the functions of a solar inverter, charge controller, and battery charger into a single unit.

Model	1.5KW	3.6KW	4.2KW	5.5KW	5KWBG	6.2KW	6.2KWBG	13.2KW
AC Input
Rated Input Voltage (VAC）	208/220/230/240；L+N+PE
Voltage Range (VAC)	90~280±3(normal mode):170~280±3(UPS mode)
Freeueney(Hz)	50/60(Auto Adaptive)
AC Output
Rated Capacity (kw)	1.5	36	4.2	5.5	5	6.2	6.2	132
Surge Power (kVA)	3	7.2	8.4	11	10	12	12	26.4
Voltage (VAC)	208/220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time (ms)	10(normal mode)/10 (UPS mode)
Wave Form	Pure Sine Ware
Overload Capacity (Battery Mode)	60s@102%~110% load; 10s@110%~130% load:3s@130%~150% load; 0.2s@>150% load
Max. Efficiency (Battery Mode)	90%@ 12VDC	92.7%@ 24VDC	92.7%@ 24VDC	93%@ 48VDC	93%@ 48VDC	93%@ 48VDC	93%@ 48VDC	>93%@ 48VDC

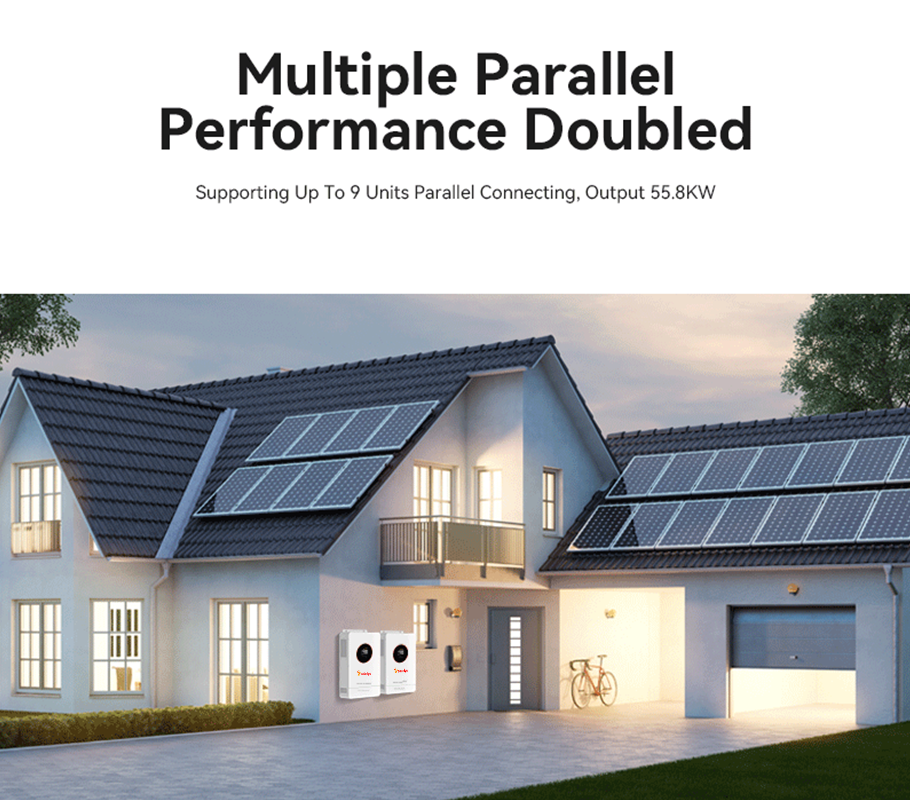

Parallel Quantity	NA	NA	NA	NA	9Max	NA	9Max	6Max



Benefits of an All-In-One Off-Grid Wifi Hybrid Solar Inverter

*  Cost-effective: By combining multiple components into one unit, all-in-one inverters can save you money on installation costs and equipment.

*  Space-saving: These compact units take up less space than traditional solar setups, making them ideal for homes or businesses with limited space.

* Easy to install: All-in-one inverters are designed for easy installation, often featuring plug-and-play connectivity.

*  Reliable power: With a built-in charge controller and battery charger, these inverters ensure a stable and reliable power supply, even during power outages.

*  Off-grid capability: As the name suggests, these inverters are perfect for off-grid applications, allowing you to power your home or business independently from the main grid.

*  Hybrid functionality: Hybrid inverters can work with both the grid and batteries, providing flexibility and ensuring continuous power.

*  WiFi monitoring: With Wi-Fi connectivity, you can monitor your solar system’s performance remotely from your smartphone or computer.

Key Features to Look for

When choosing an All-In-One Off-Grid Wifi Hybrid Solar Inverter, consider the following features:

*  Pure Sine Wave Output: This ensures that the electricity produced is clean and stable, suitable for sensitive electronics.

*  High PV Input Voltage Range: A wider range allows for more flexibility in solar panel configuration.

*   Built-in MPPT Solar Charge Controller: Maximum Power Point Tracking (MPPT) optimizes the power output from your solar panels.

*   Selectable Input Voltage Range for Home Appliances and Personal Computers: This allows you to tailor the inverter’s output to your specific needs.

*  Configurable AC/Solar Input Priority via LCD Setting: You can choose whether to prioritize solar power or grid power.

*  Compatible with Mains Voltage or Generator Power: Provides versatility for different power sources.

*  Overload, Over Temperature, Short Circuit Protection: Essential safety features to protect your system.

*  Smart Battery Charger Design for Optimized Battery Performance: Extends battery life and efficiency.

*  Cold Start Function: Allows the inverter to start even with no grid power.

An All-In-One Off-Grid Wifi Hybrid Solar Inverter is an excellent investment for anyone looking for a comprehensive, efficient, and reliable solar power solution.

Product Details
