Single Phase Low Voltage Solar Hybrid Inverter

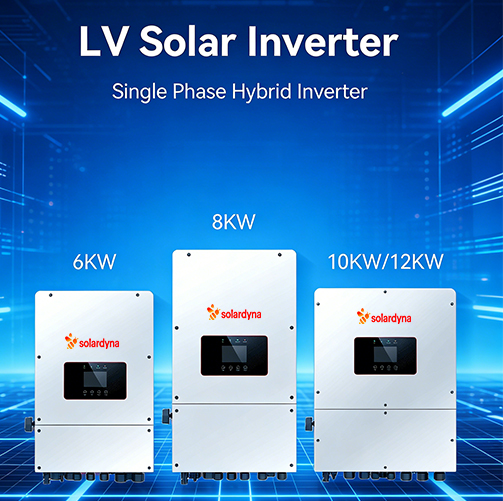

Versatile Power of SolarDyna Single Phase Low Voltage Solar Hybrid Inverter: Choose from 6kW, 8kW, 10kW, or 12kW single-phase models.

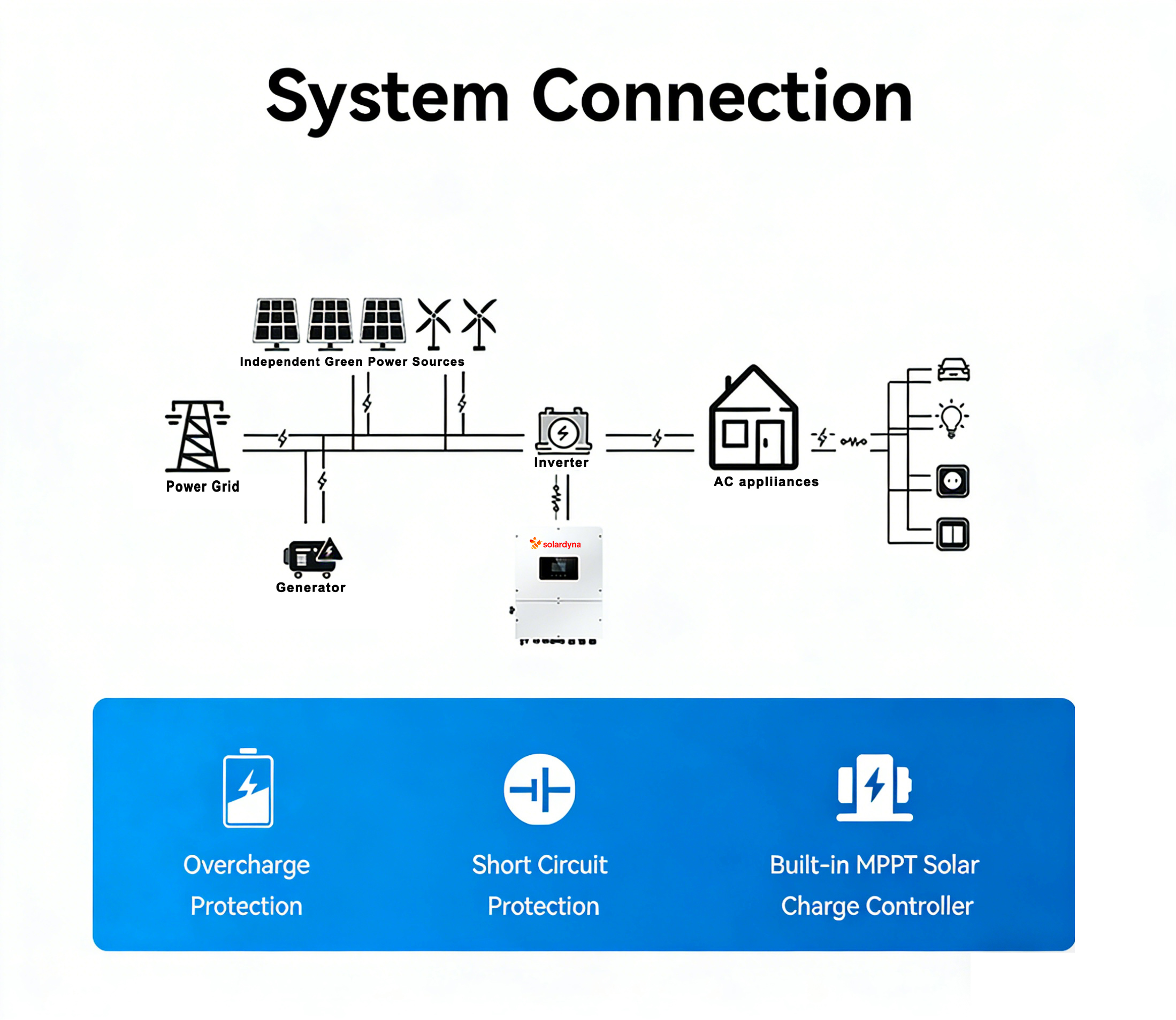

True Hybrid Functionality: Seamlessly combines solar, battery, and grid power.
Reliable Backup: Ensures continuous power during outages with integrated battery support.
Optimized Efficiency: Built-in MPPT solar charge controller maximizes energy harvest.
Enhanced Safety: Features overcharge, short circuit, and multiple other protections.
Ideal for: Residential homes, small commercial setups, and off-grid solutions.”
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Maximize Your Solar Potential with Our Low Voltage Single Phase Hybrid Solar Inverter (6kW-12kW)
Unlock greater energy independence and optimize your solar investment with our advanced Low Voltage Single Phase Hybrid Solar Inverter. Designed for residential and small commercial applications, this Single Phase Low Voltage Solar Hybrid Inverter seamlessly integrates solar power, battery storage, and the grid, providing a reliable and efficient energy solution. Available in a versatile range of power outputs (6kW, 8kW, 10kW, 12kW), it’s engineered to meet diverse energy demands and future-proof your power system.
Key Features & Benefits:
Hybrid Functionality for Uninterrupted Power: Experience true energy resilience. Our inverter intelligently manages power flow, prioritizing solar energy, charging batteries, and drawing from the grid only when necessary. This ensures continuous power supply, even during grid outages, thanks to its integrated UPS (Uninterruptible Power Supply) function.
Scalable Battery Storage Integration: Built to connect with low voltage (48V) battery banks, this inverter offers flexible and expandable energy storage. Store excess solar power for use at night or during peak demand, significantly reducing your reliance on the grid and lowering electricity bills.
Optimized Performance & High Efficiency: Engineered with cutting-edge technology, our inverter boasts exceptional conversion efficiency, maximizing the energy harvested from your solar panels. This translates to more usable energy for your home or business, accelerating your return on investment.
Smart Energy Management & Monitoring: Take control of your energy usage with intuitive monitoring capabilities. Track real-time power generation, consumption, and battery status through a user-friendly interface or remote monitoring platform, allowing for informed energy decisions.
Robust & Reliable Design: Constructed with high-quality components and adhering to stringent manufacturing standards, Single Phase Low Voltage Solar Hybrid Inverter is built for longevity and dependable performance in various environmental conditions. Its durable design ensures stable operation for years to come.
Grid-Tied & Off-Grid Capabilities: Whether you’re looking to reduce your electricity bill while staying connected to the grid, or seeking complete energy independence in remote locations, our hybrid inverter offers the flexibility to operate in both grid-tied and off-grid modes.
Safety & Compliance Assured: Our inverter is equipped with multiple protection features, including over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection, ensuring safe operation for your system and property. It complies with relevant international safety and EMC standards.
Easy Installation & User-Friendly Interface: Designed for straightforward installation, this inverter simplifies the setup process. The clear display and intuitive controls make it easy to operate and monitor your solar energy system.
Technical Specifications
| Model | 6K | 8K | 10K | 12K |
| Battery Type | Lead-acid or Li-lon | |||
| Battery Wehtage Range (V) | 40-60 | |||
| Max.Charging Curment (A) | 135 | 190 | 220 | 250 |
| Max. Diacherging Cument (A) | 135 | 190 | 220 | 290 |
| Charging Curme | 3 Stages/Equalization | |||
| External Temperature Sensor | Yes | |||
| Charging Strategy Tor Li-lon Battery | Self-adaption to BMS | |||
| PV String Input Data | ||||
| Max.DC Input Power(W) | 7800 | 10400 | 13000 | 15600 |
| PV Imput Voltage (V) | 370V(125V-500V) | |||
| MPPT Range (V) | 150-425 | |||
| FulLoad DC Vokage Range | 200-425 | |||
| Start-up Veltage (V) | 125V | |||
| PV Imput Cument (A) | 13+13 | 20+20 | 26+26+26 | |
| No.of MPPT Tackers | 2 | 3 | ||
| No.of Strings Per MPPT Tacker | 1+1 | 1+1+1 | ||
| AC Input/Output Data | 2 times of rated power, 10 S | |||
| Rated AC Output and UPS Power (W) | 6000 | 8000 | 10000 | 12000 |
| Max.AC Ourput Power (W) | 6000 | 8000 | 11000 | 132000 |
| Peak Power (o/ffgrid) | ||||
| AC Input/OutputRated Curment (A) | 27.3/26.1 | 36.4/34.8 | 45.5/43.5 | 54.6/52.2 |
| Max AC Inpat/Cusput Curmant (A) | 30/28.7 | 40/38.3 | 50/47.9 | 60/57.4 |
| Max.Contiruous AC Passthrough (A) | 40 | 50 | 60 | 60 |
| Peoer Factor | 0.8 leading -0.8 lagging | |||
| Output Frequency and Vellage | 50/60Hz;220/230Vac | |||
| Grid Type | Single Phase | |||
| Total Harmonic Dietertion (THD) | <3% (of nominal power) | |||
| DC Current Injection | <0.5%In | |||
| Efficieney | ||||
| Max.Efficiency | 97.60% | |||
| Eure Efciency | 96.50% | |||
| HPPT EMcency | >99% | |||
| Certifications and Standards | ||||
| Grid Regulation | IEC61727/EN50549-1 | IEC62116/IEC61727/EN50549-1 | ||
| Safety EMC/Standard | IEC/EN 61000-6/2/4,IEC/EN 62109-1,IEC/EN 62109-2 | |||
| General Data | ||||
| Operating Temperature Range (℃) | -40~+60℃,>45℃ Derating | |||
| Cooling | Smart Cooling | |||
| Noise (dB) | ≤50 dB | |||
| Communication With BMS | Rs485.CAN | |||
| Monhoring Mode | WIFI, APP | |||
| Wheight (kg) | 24 | 29 | 31 | |
| Cabinet Size (mm) | 346Wx506Hx255D | 426Wx526Hx255D | 446Wx576Hx254D | |
| Protection Degree | P65 | |||
| Installation Style | Wall-mounted | |||
| Warranty | 5 Years (10 Years Optional) | |||
Applications:
Residential homes seeking reduced electricity bill
s and energy backup.
Small businesses aiming for sustainable energy and operational resilience.
Off-grid cabins or remote installations requiring independent power.
New solar installations and existing system upgrades.
Why Choose Our Hybrid Solar Inverter?
Invest in a smarter, more sustainable future with our advanced Single Phase Low Voltage Solar Hybrid Inverter. Combining cutting-edge technology with robust design, it offers unparalleled performance, reliability, and flexibility. Take advantage of solar energy, secure your power supply, and contribute to a greener planet.
Contact us today to learn more about how our Low Voltage Single Phase Hybrid Solar Inverter can revolutionize your energy system!

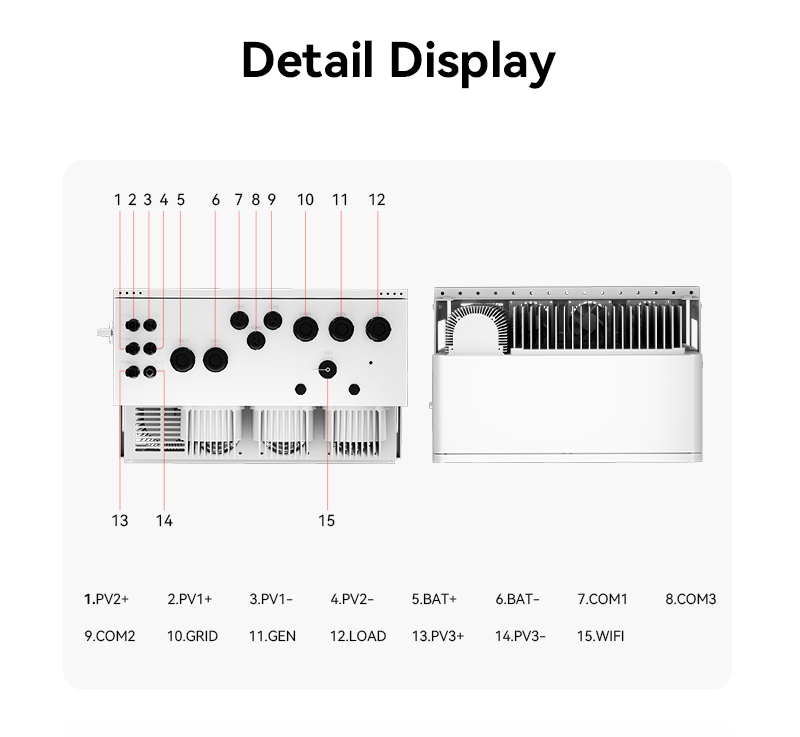

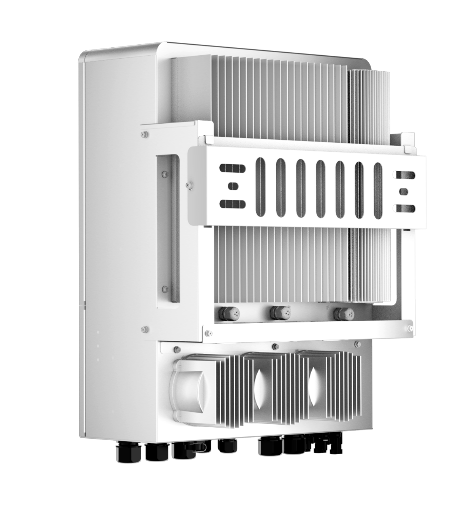

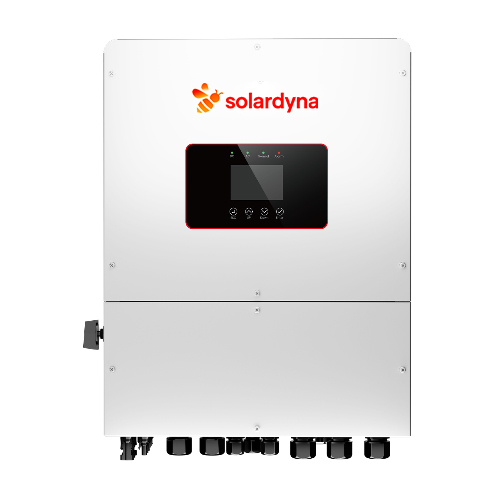

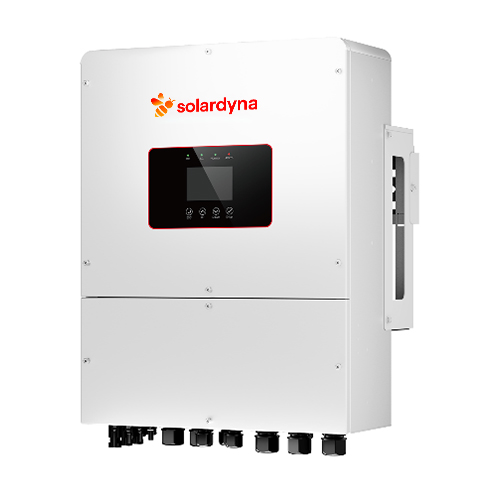

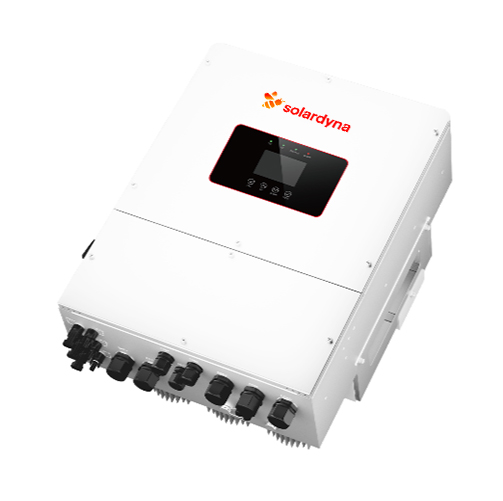

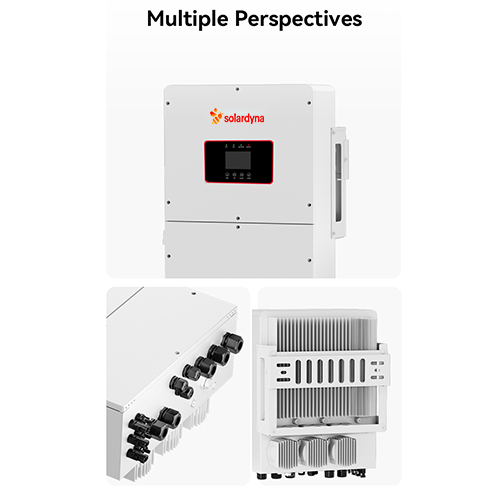

Product Picture Details
